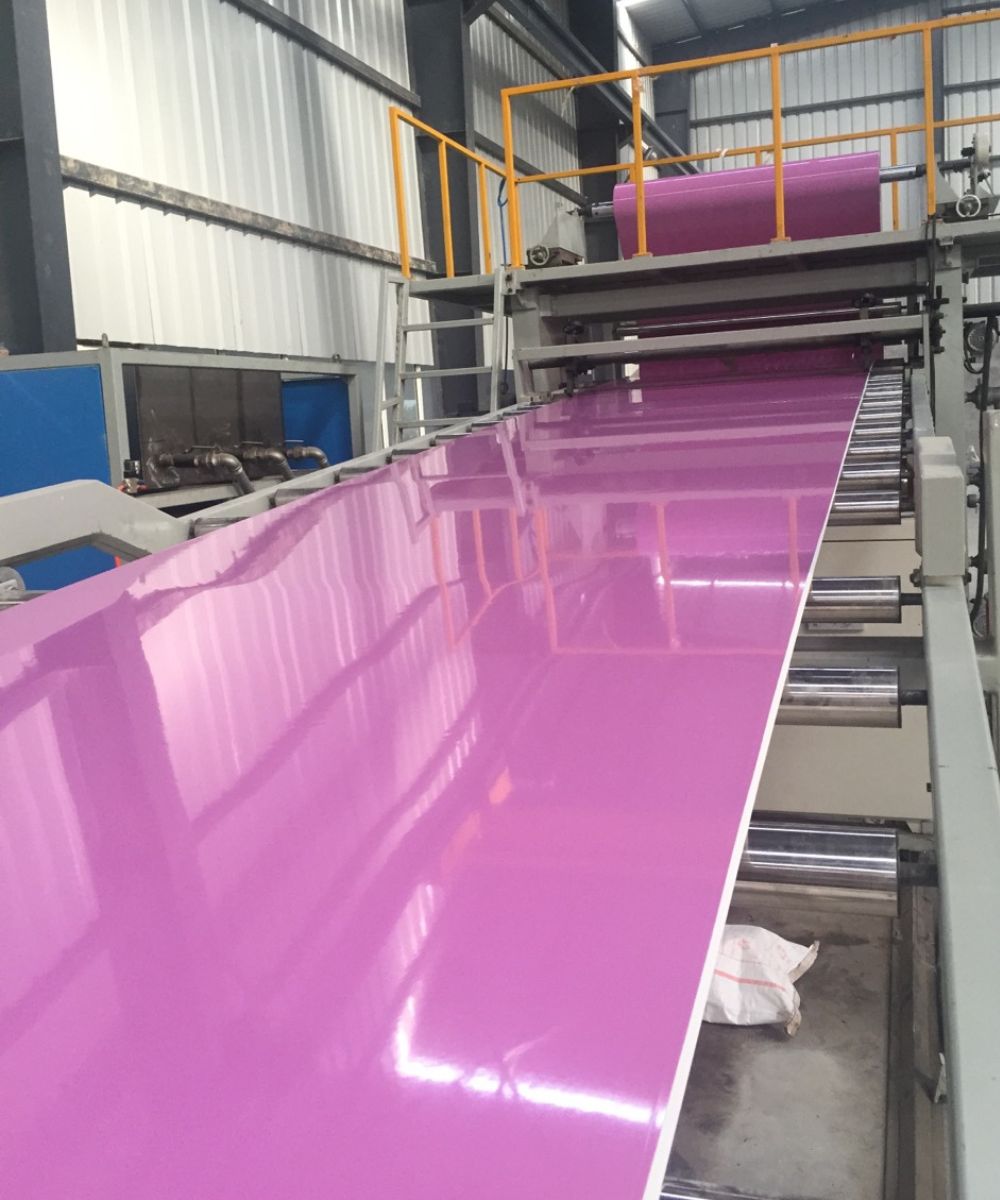

PVC Marble Sheet Production Line
Be Green By Extrusion!
About FANLYPLAS PVC Marble Sheet Extrusion Line
Applications : Our PVC marble sheet extrusion line is designed to produce sheets that serve as a versatile and durable alternative to natural marble. These sheets are ideal for various applications, including wall panels, decorative boards, flooring, and furniture surfaces, offering an elegant aesthetic with enhanced practicality.
Production Flow : The production process begins with material preparation using crushers and millers, followed by mixing. The materials are then extruded, laminated, and shaped through calendering. Subsequent steps include cooling, cutting, stacking, and optional UV coating, resulting in the final PVC marble sheet.
Line Features : This production line is characterized by its automated operation, high production speed, and precise control system, ensuring efficiency and product quality. It offers production flexibility for diverse specifications, reduces costs through automation, and maintains product consistency via strict quality control.

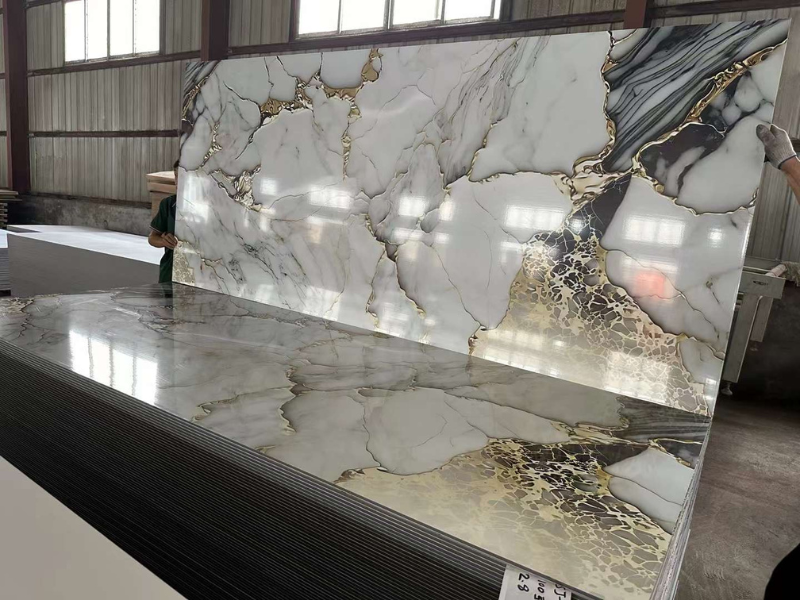

Applications of PVC Marble Sheets

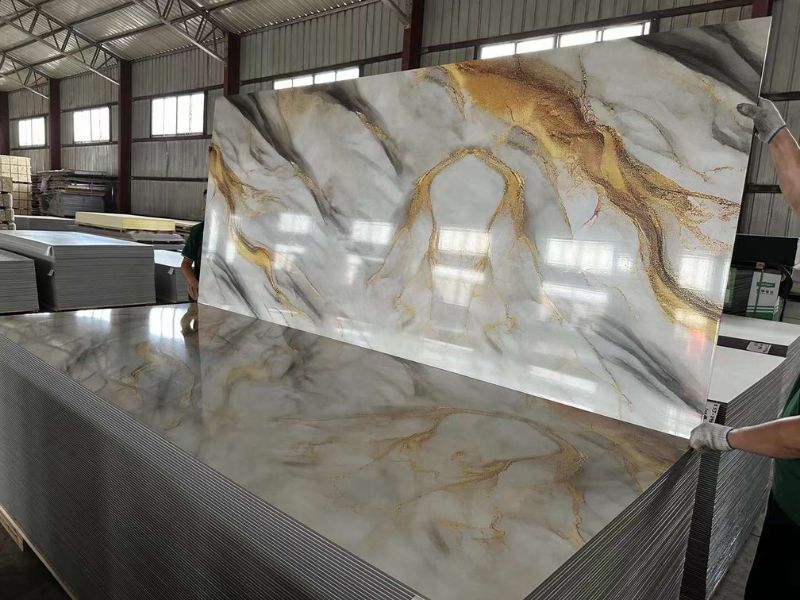

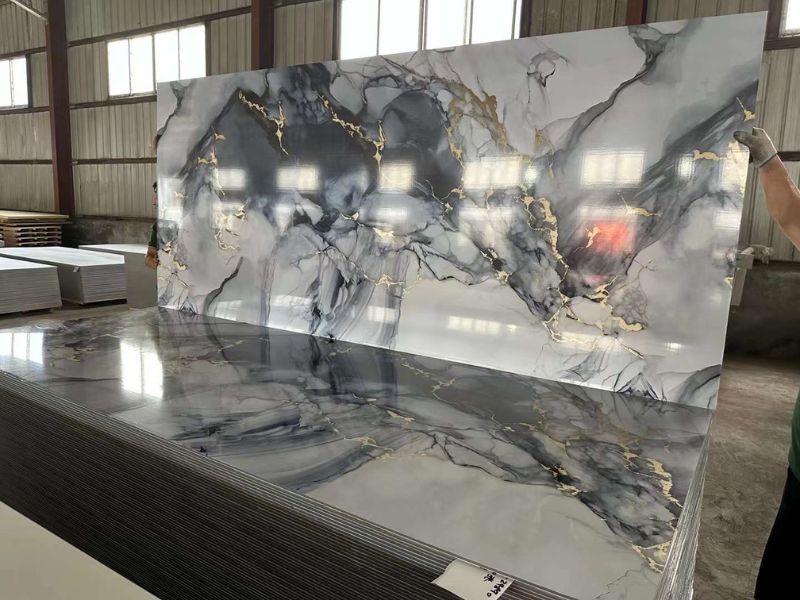

PVC marble sheets, manufactured by our advanced production lines, offer a compelling alternative to natural stone.Beyond beauty, these sheets are remarkably practical. They are lightweight for easy handling and installation, yet highly durable, resisting scratches, stains, and impacts. Furthermore, their waterproof and fire-retardant properties make them a safe and long-lasting choice for any interior environment. Maintenance is effortless due to the non-porous surface, which prevents mold and cleans with a simple wipe.
The versatility of PVC marble sheets allows for a wide range of applications in both residential and commercial settings. They are an ideal solution for creating elegant feature walls, backsplashes, and ceilings in living rooms, kitchens, and bedrooms. Thanks to their excellent moisture resistance, they are perfectly suited for wet areas like bathrooms, showers, and laundry rooms. In the commercial sector, these sheets are widely used to enhance the interiors of hotels, office lobbies, restaurants, hospitals, and retail stores, providing a luxurious ambiance without the high cost and maintenance of real marble. Elevate your space with this innovative and cost-effective decorative material.
Customized PVC Marble Sheet Making Machine
A PVC marble sheet making machine is an integrated system, and its configuration is engineered specifically for you. We design and customize the entire line—from the extruder and T-die to the three-roll calender and downstream equipment—based on your final product’s specifications and performance goals.The following are some examples of the components of customer production lines.

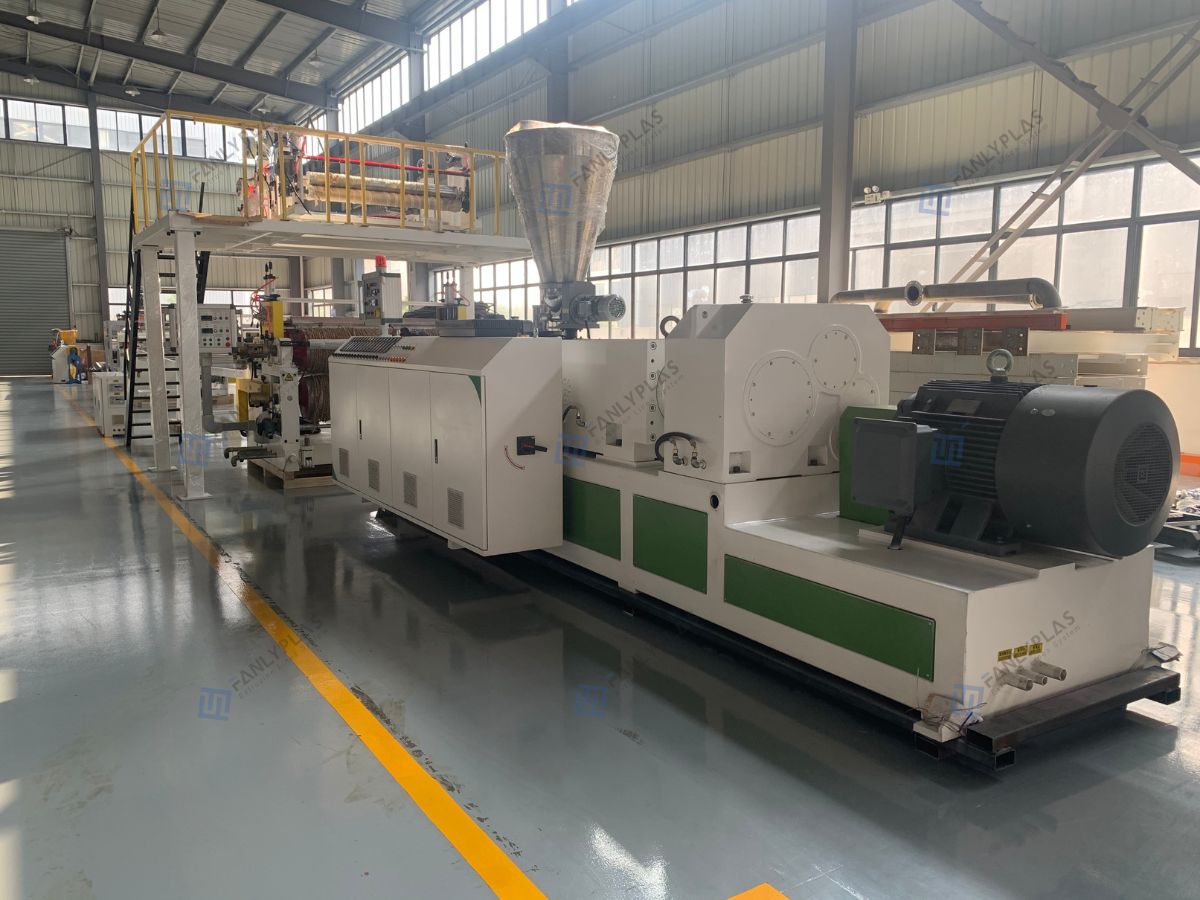

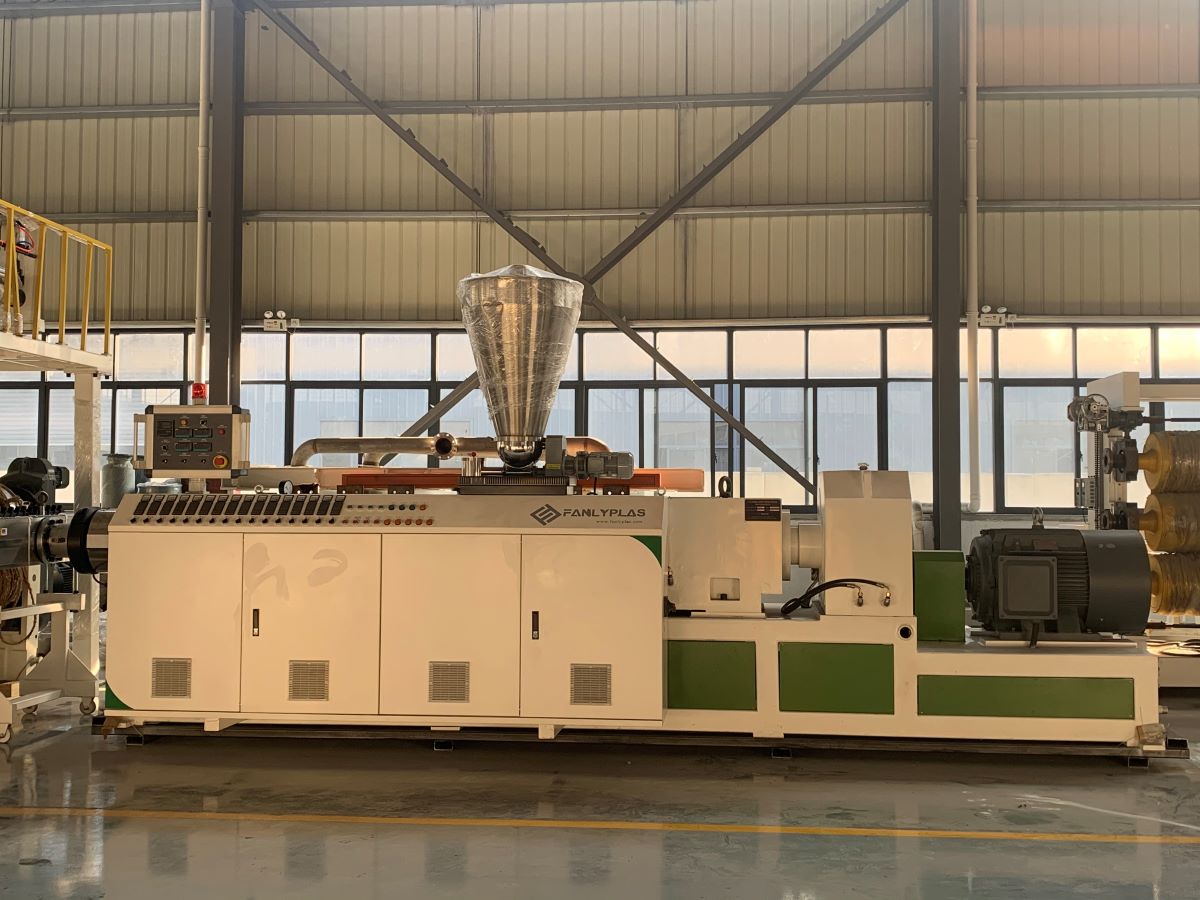

Extruder
Adopt conical twin screw extruder to increase output, reduce production costs and save energy. Extruder feeding adopts screw feeding
T-Die
We use high-quality metal to make the T-Die. The flow channel inside the T-Die adopts a hanger style with adjustable thickness. Equipped with a Die trolley for easy disassembly and safety.

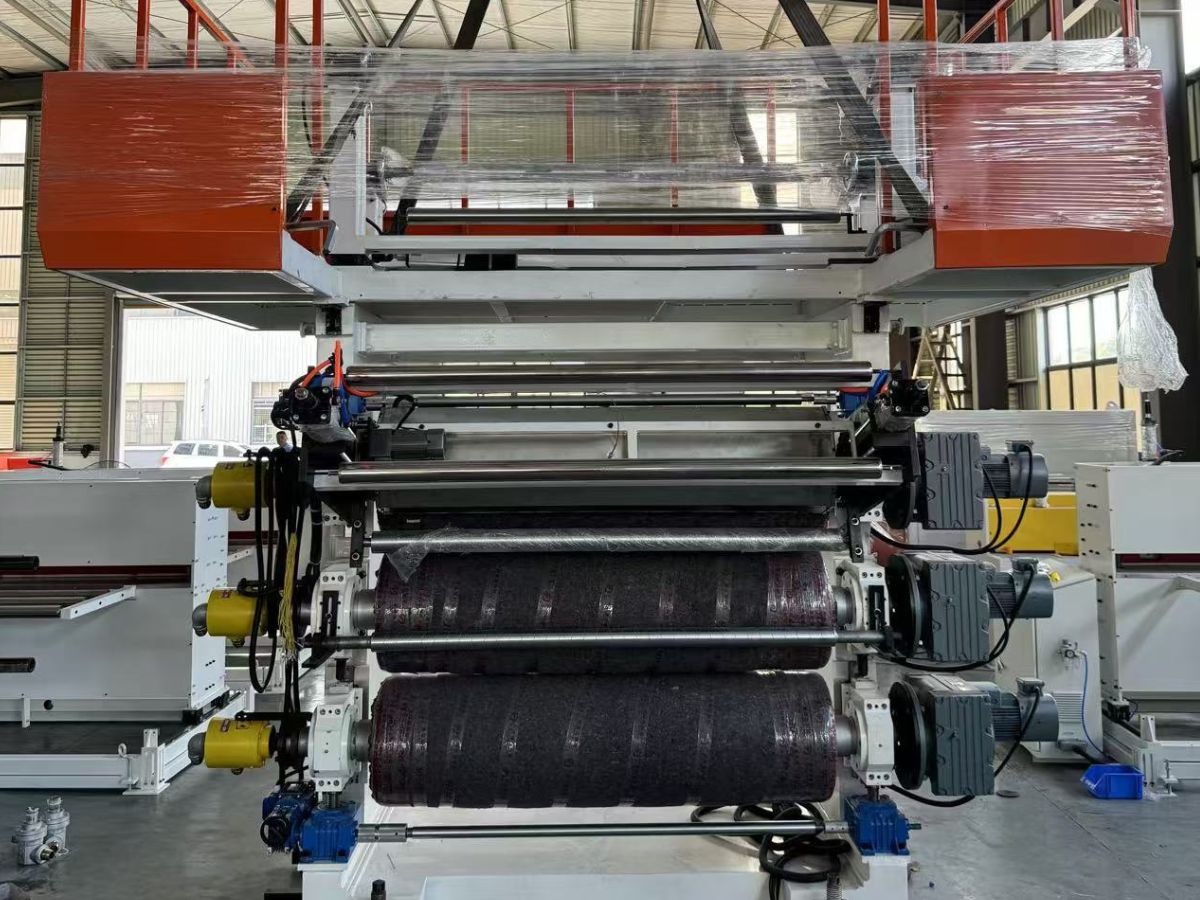

Three-roll Calender
The three-roller machine is equipped with an oil temperature controller. For the embossing of the sheet, customers can decide whether to emboss on one side or both sides according to the number of embossing rollers.

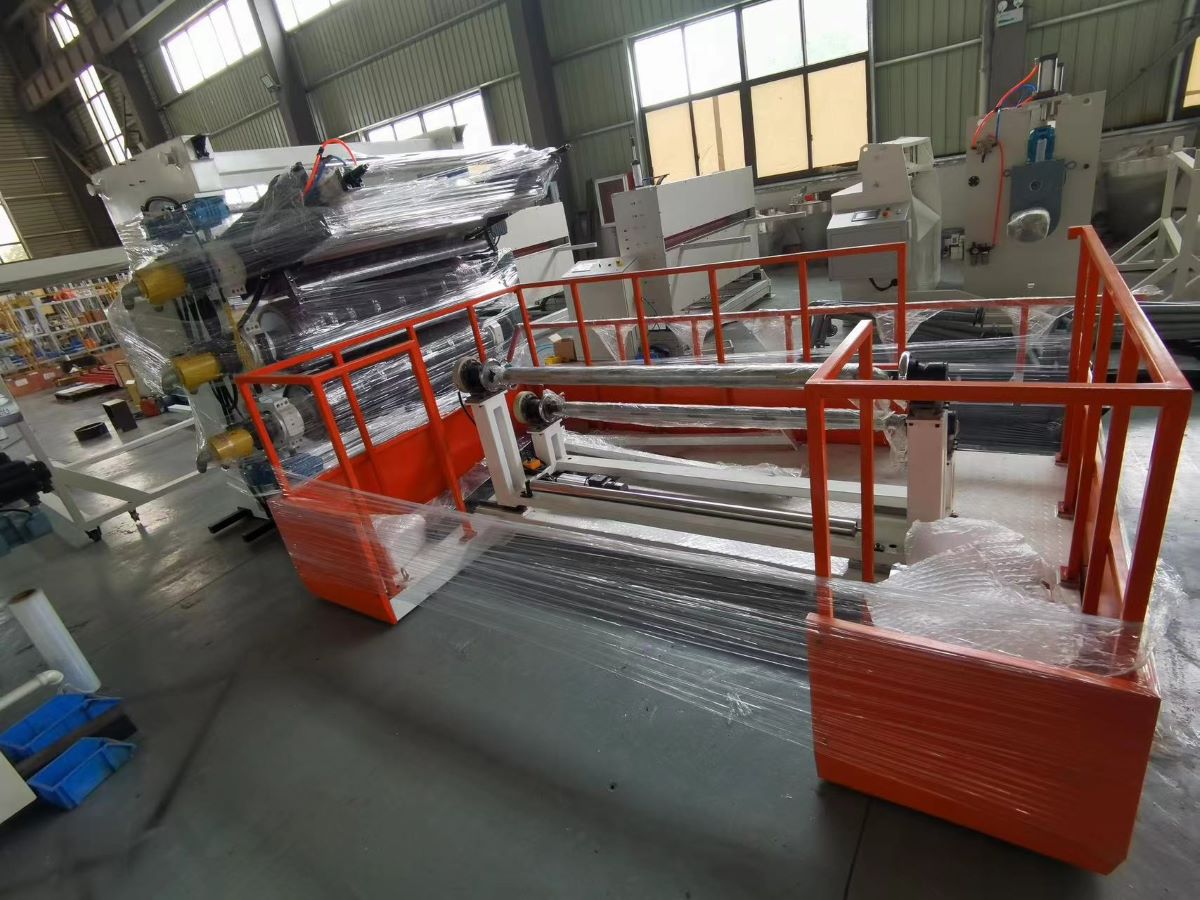

Film laminating and hot stamping device
We provide laminating platform and hot stamping for customers to choose. The laminating platform is a double-station with two air shafts.

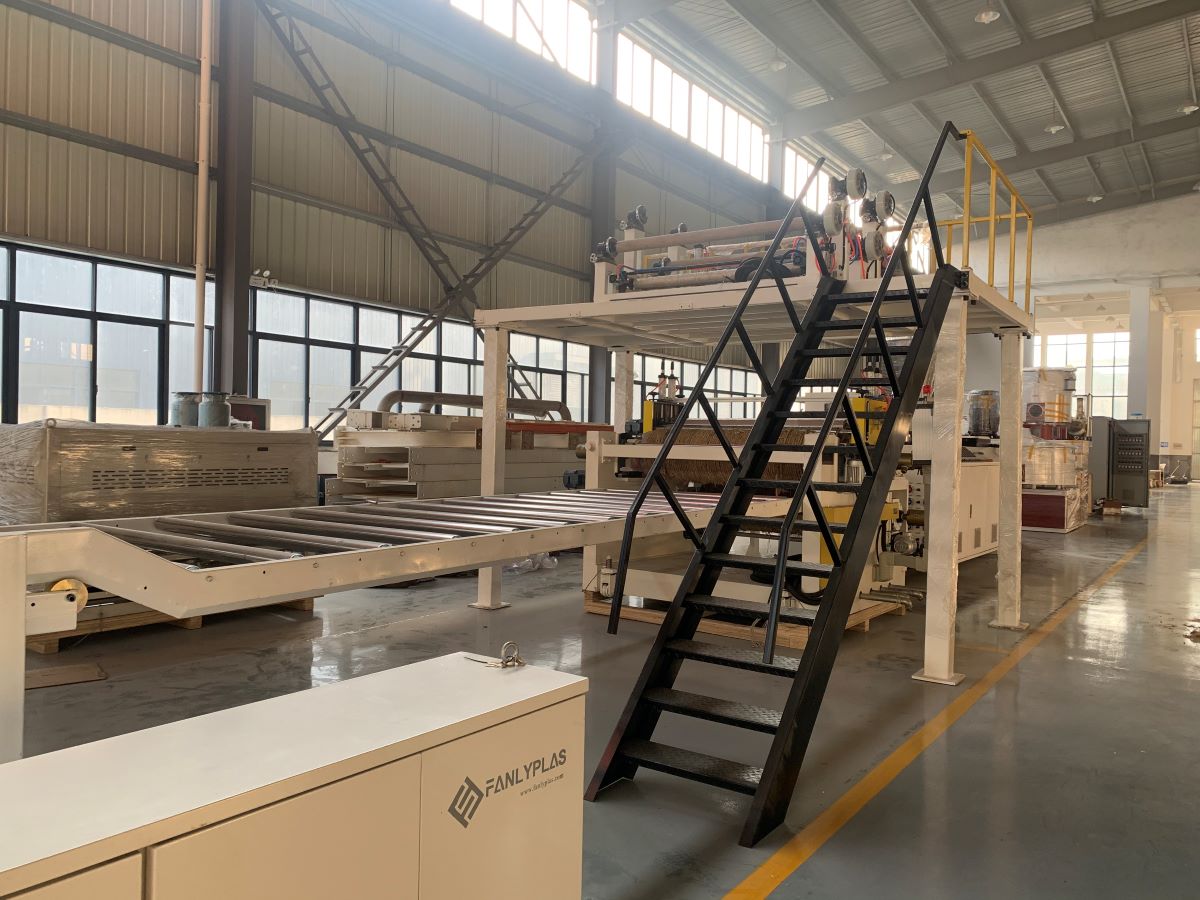

Cooling Bracket with Edge Trimming Unit
The length of the cooling bracket can be determined according to the actual local temperature of the customer, and the trimming cutter is blade-type cutting without generating any dust.

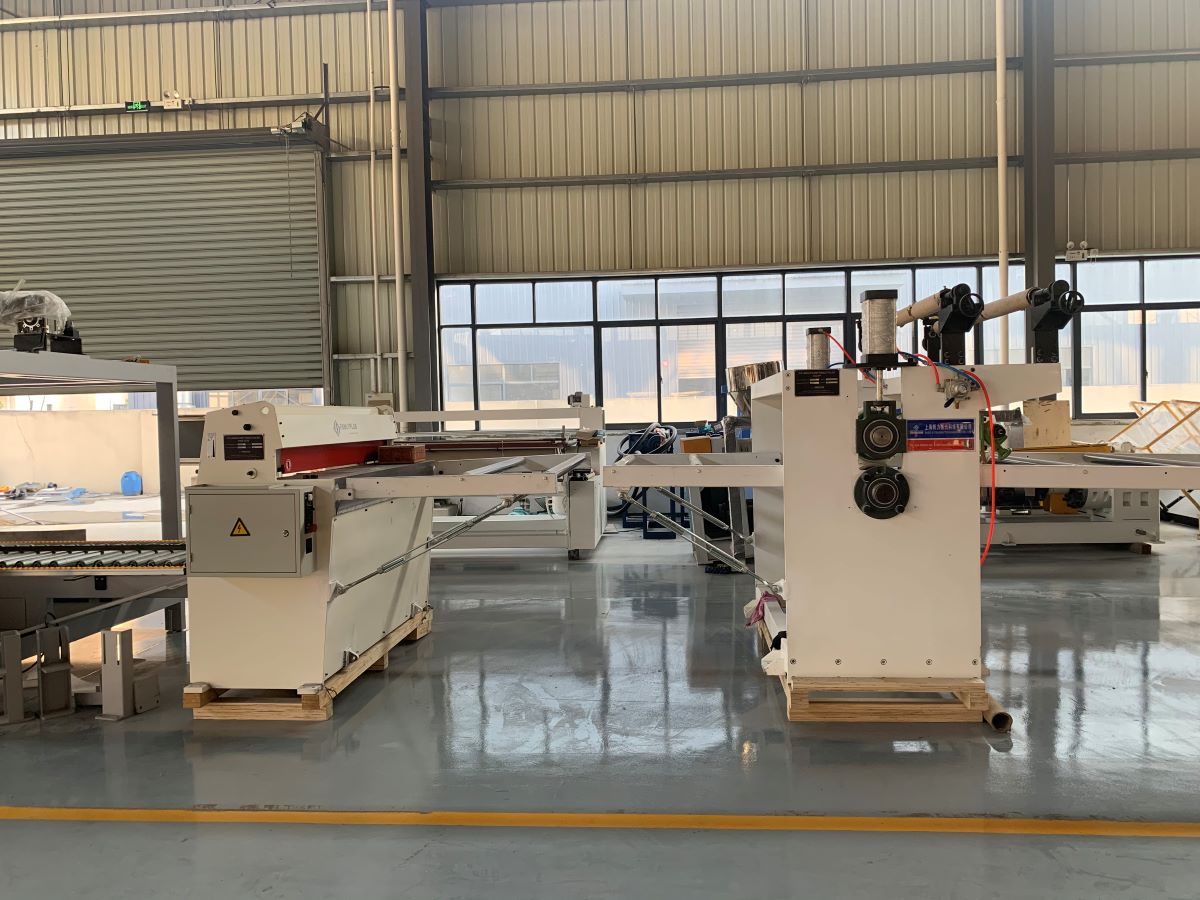

Haul off unit
Two rollers for traction, and with a protective film laminating device, to keep the surface of the sheet clean after production.

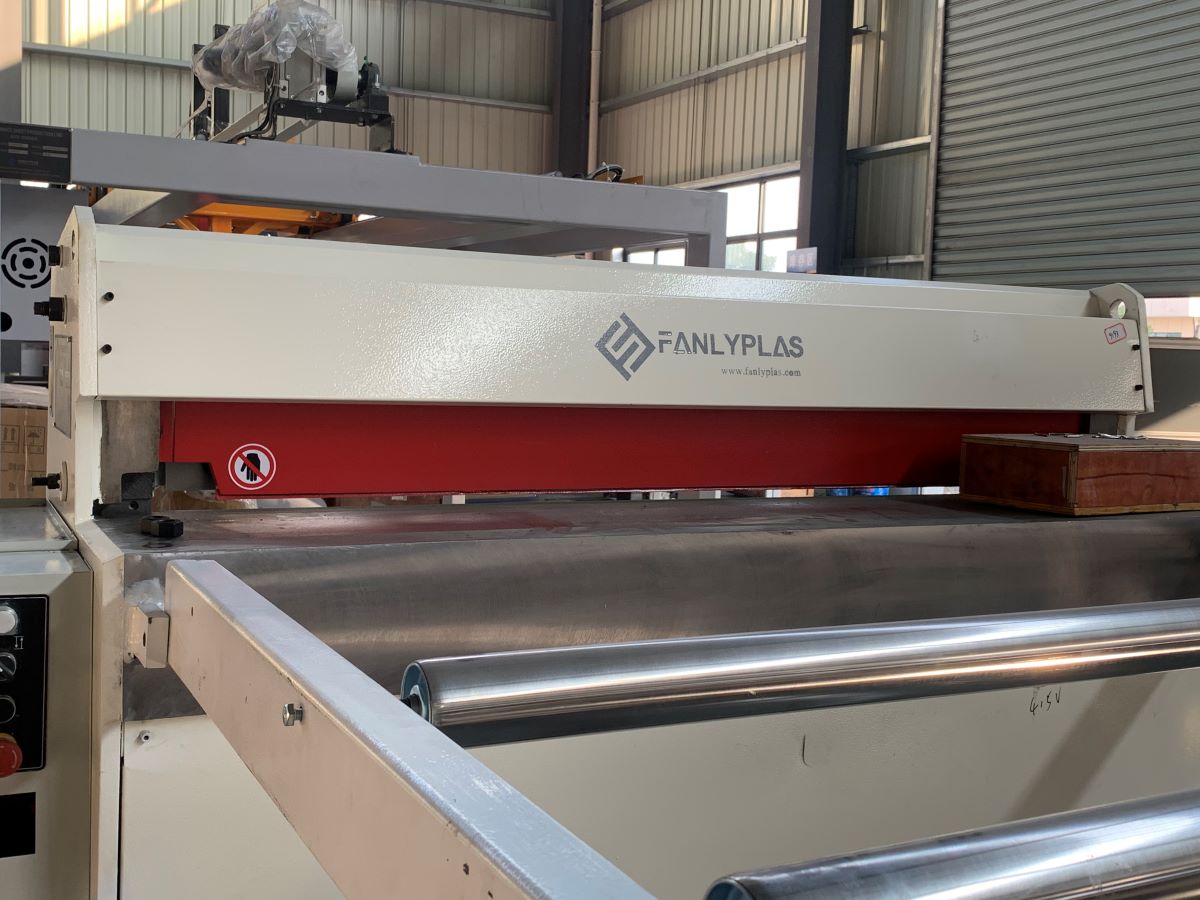

High speed shear utter
The shear cutter is controlled by a servo motor, with controllable cutting length, high cutting accuracy and stable cutting process.

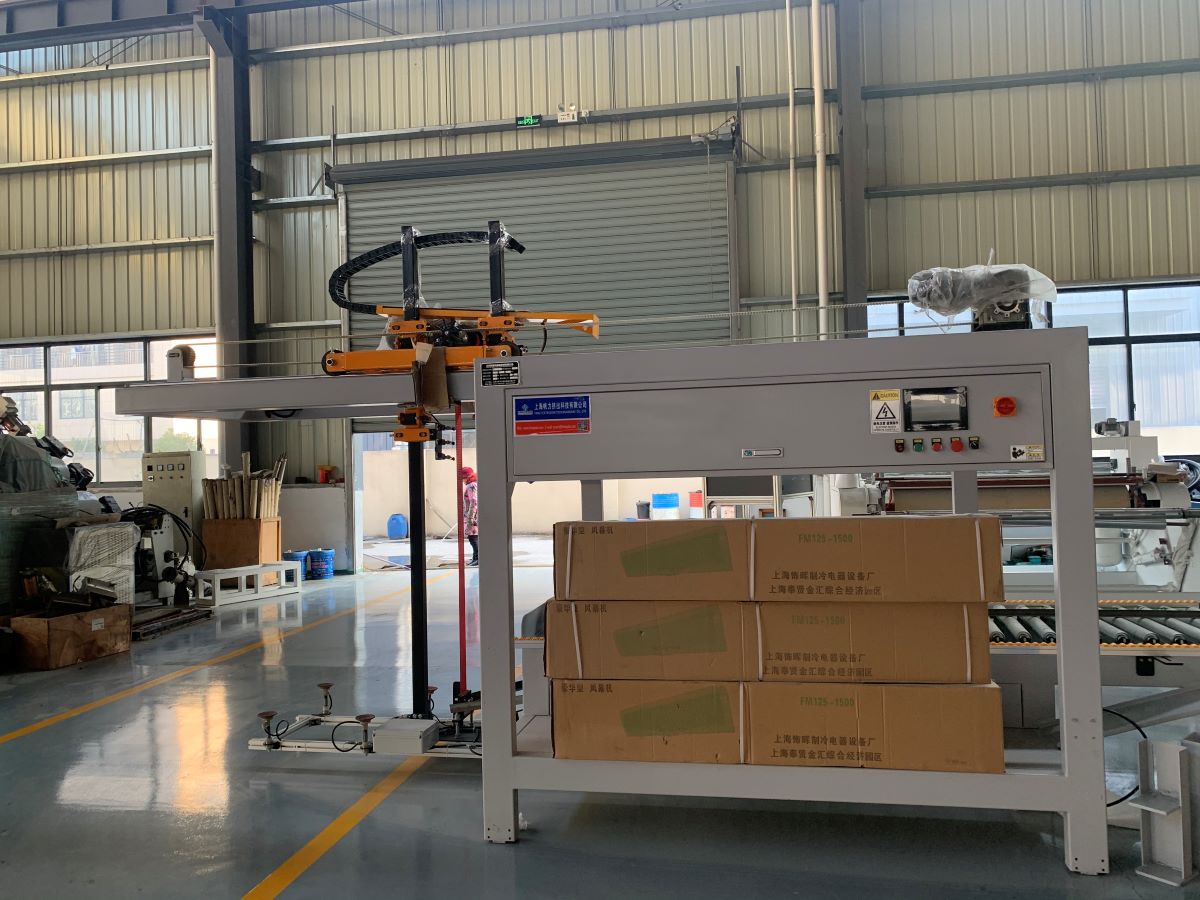

Auto stacker
We provide auto stacker ,which not only save labor costs but also provide stable automatic stacking.

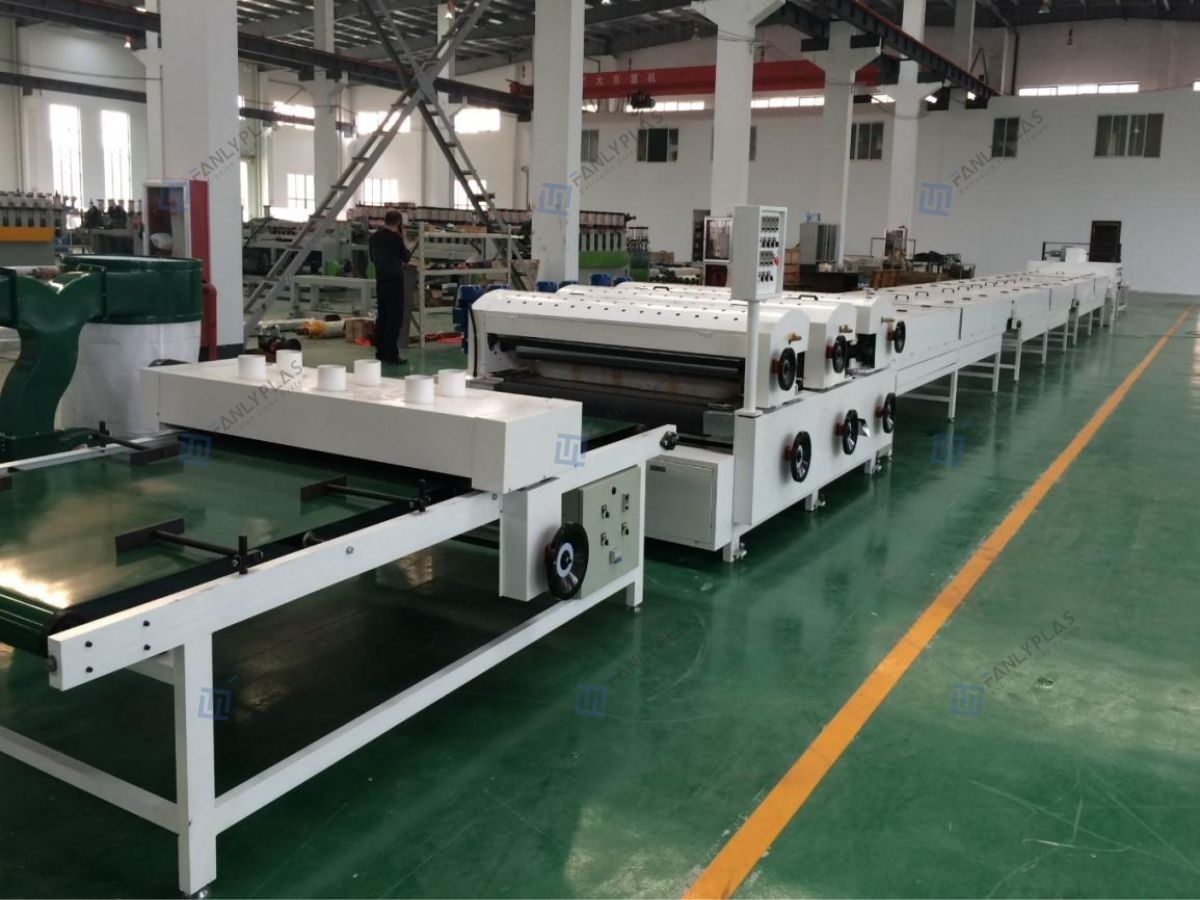

UV Coating Machine
Our UV Coating Machine applies a specialized coating that is instantly cured by UV light. This process significantly enhances the PVC marble sheet's scratch resistance, hardness, and durability, delivering a premium, high-gloss finish for superior decorative appeal.
PVC Marble Sheet Extrusion Line Main Parameters Table
The maximum output listed is an approximate value based on standard PVC virgin material. Actual output can vary depending on factors such as raw material formulation (e.g., use of regrind), sheet thickness, and operational parameters.
| Extruder Model | Main Motor Power | Production Capacity | Width range | Thickness range |
|---|---|---|---|---|
|
FL-80/156 |
55/75 (kw) |
250-300 (kg/h) |
1220-1500 (mm) |
1-8 (mm) |
|
FL-92/188 |
110 (kw) |
500-650 (kg/h) |
1220-1500 (mm) |
1-8 (mm) |
Why Choose PVC Marble Sheet Machine from FANLYPLAS?
Superior Quality & Advanced Technology
ANLYPLAS is committed to providing high-quality PVC marble sheet machine, utilizing advanced extrusion technology and precise mold design to ensure stable and efficient operation, producing excellent PVC marble sheet to help you stand out in the market.
Customized Solutions & Professional Service
We have an experienced team that can provide tailor-made production line solutions based on your specific needs. Additionally, we offer comprehensive installation, training, and after-sales service to ensure the smooth operation of your production without any worries.
Continuous Innovation & Trustworthy Brand
FANLYPLAS, a well-known plastic extrusion equipment manufacturer in Shanghai, China, has obtained ISO9001 quality management system certification. Choosing us will ensure you have a long-term partner.
Q&A
What quality assurance can you offer, and what brands of components do you use?
Quality is our cornerstone. With over 20 years of manufacturing experience, we build our machines for reliability and performance. We integrate premium components from world-renowned brands like Siemens, Schneider, and Omron to guarantee stability and a long service life. Before shipment, every production line undergoes a rigorous quality control inspection and a complete test run at our factory. We welcome you or your designated third-party to witness this pre-delivery test in person to ensure your total satisfaction.
What kind of after-sales service do you provide for international customers?
We provide comprehensive global after-sales service to ensure your success. Our experienced engineers can travel to your factory for on-site installation, commissioning, and operator training. For long-term peace of mind, we offer lifetime 24/7 online technical support via video call or messaging for any troubleshooting needs. Furthermore, we guarantee a reliable, long-term supply of all necessary spare parts at a reasonable cost, ensuring your production line runs smoothly for years to come.
How can I get a quotation for your PVC marble sheet production line?
To receive an accurate quotation, please contact us with your specific requirements, as our production lines are fully customizable. Provide us with details such as your desired sheet width and thickness, required output capacity (kg/hr), and the intended end application. Also, mention any special requests like specific component brands. Once we have this information, our sales engineering team will promptly prepare and send you a detailed technical proposal and a competitive price quotation.
What is the delivery time for your machines?
The typical delivery time for a standard PVC marble sheet production line is approximately 60 to 90 working days after receiving the down payment and confirming all technical specifications. The exact lead time can vary depending on the complexity and customization of the machine, as well as our current production schedule. We will provide a confirmed delivery schedule in our official sales contract.
