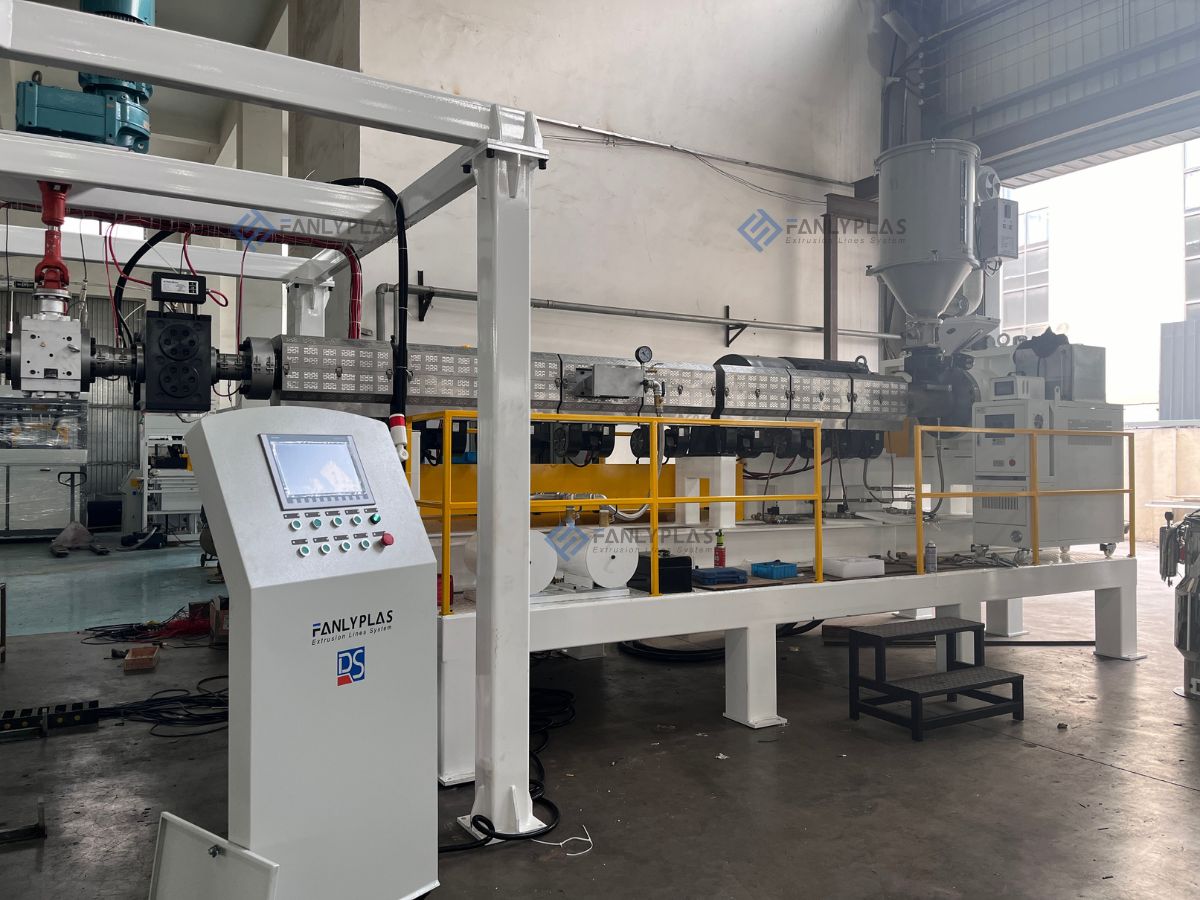

GPPS Sheet Extrusion Line

Custom your automatic production line! Made to order. Made to fit.

Applications and Features of GPPS Sheet Extrusion Line

FANLYPLAS GPPS Sheet Extrusion Line is a high-performance manufacturing system designed for the production of GPPS Sheet with exceptional purity, gloosy and no crystal point.
Key Features of the Production Line:
1.Advanced Extrusion Technology: Our GPPS Sheet Extrusion Line employs state-of-the-art extrusion equipment to ensure uniform thickness, smooth surfaces, and no bubbles.
2.High Efficiency and Automation:The production line integrates automation systems, including precise temperature control and synchronized operations, enhancing productivity and reducing labor costs.
3.Customizable Design:Our production line supports various sheet specifications, including thickness, width, and surface textures, to meet diverse application needs.
4. Precise cutting system: We adopts knife cutting and braking system together to reach perfect edge trimming and cross cutting. Non-dust cutting system which makes workshop more clean and energy saving.
5.Easy Operation and Maintenance:The user-friendly interface and robust construction ensure ease of operation and maintenance, reducing downtime and operational costs.

Equipment composition of GPPS Sheet Extrusion Line

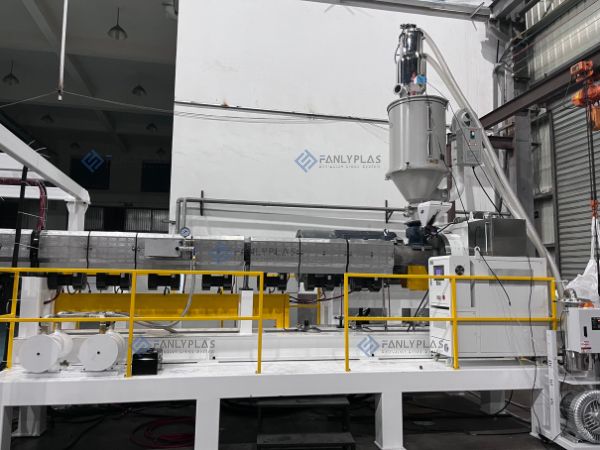

Extruder

According to the GPPS Sheet material property , a roots vented single-screw extruder is selected. The screw adopts a special mixing function and a precise temperature control system to ensure stable plasticization and no burning problem happening.

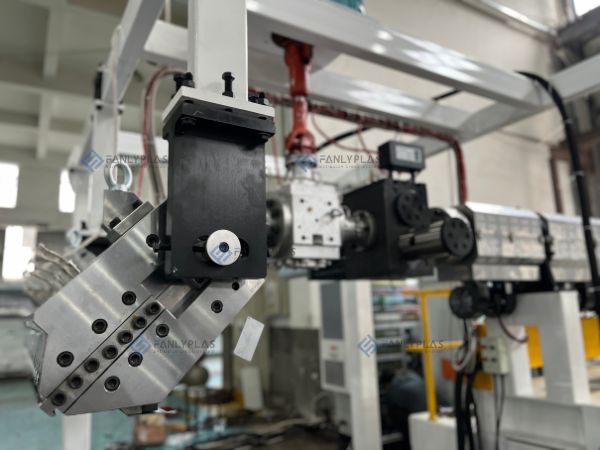

Die Head

The hanger-type die head with elastic lip which is convenient for adjusting the sheet thickness and maintain flow distribution to be uniform, and the thickness of the extruded sheet is adjusted more accurately.

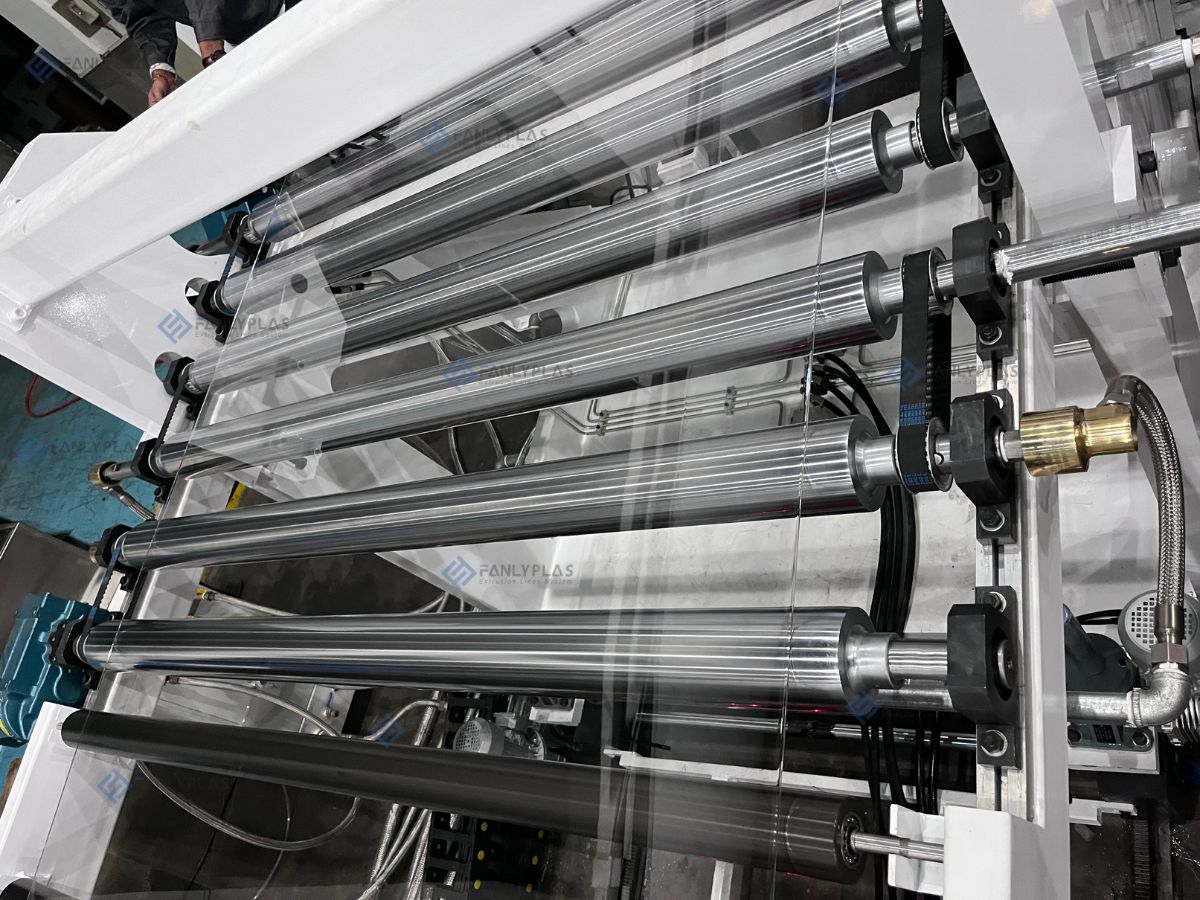

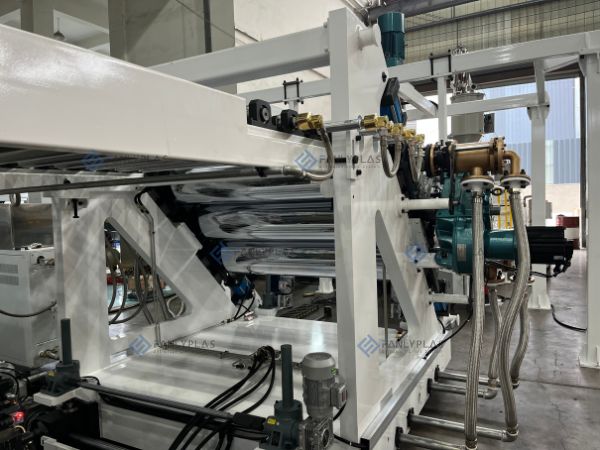

Three-roll Calender

According to the thickness and glossness of the sheet, a 45° inclined three-roller calender is used. The temperature control of the three rollers is independent of each other, the gap between the rollers can be adjusted freely and have hydraulic quick openning system.

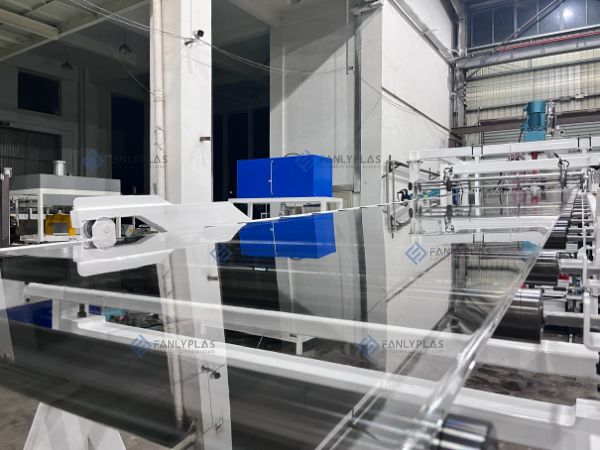

Cooling Roller Bracket

Equipped with corresponding water cooling rollers to achieve better cooling effect and avoid the sheet bending. It is also equipped with a trimming device to ensure the fixed width and edge quality of the sheet.

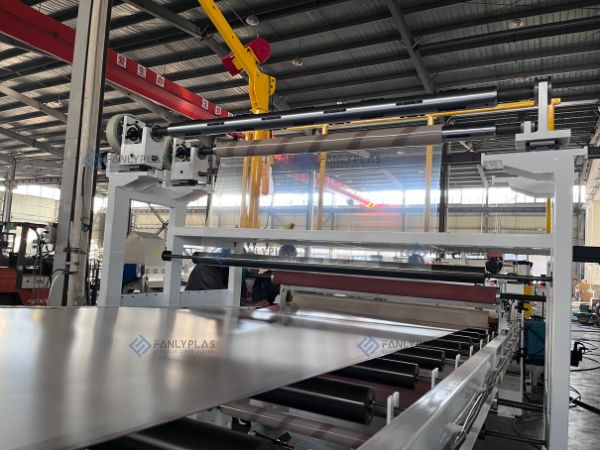

Haul-Off Unit

The haul-off unit provides consistent traction to pull the sheet through the production line. Its synchronized operation with calendar ensures smooth movement and prevents deformation.

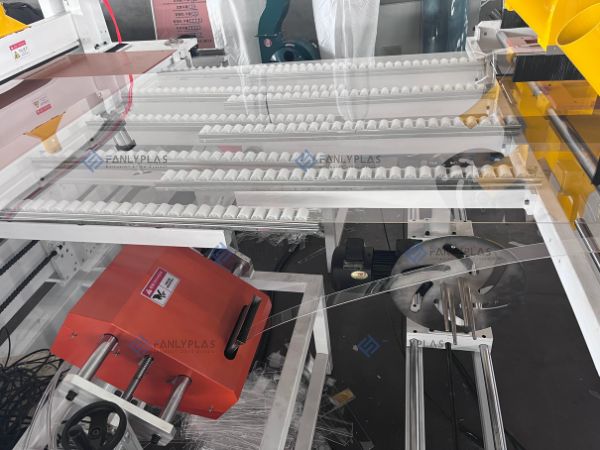

Edge Punching Collection Unit

The edge punching unit removes excess material from the sheet’s sides, providing a clean and efficient way to collect wastage materials.

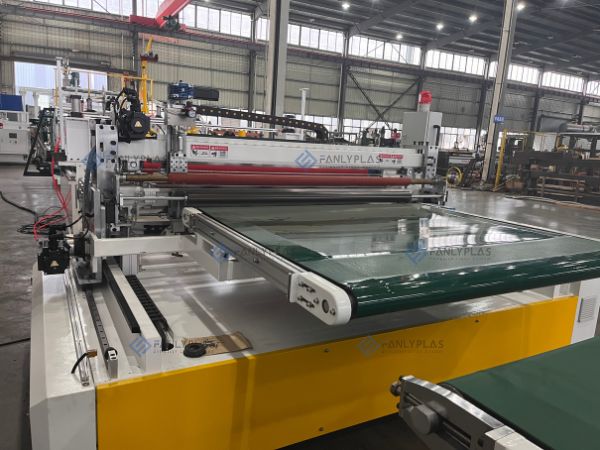

Knife Cutting Machine

The knife cutting unit with top and bottom knife unit and braking unit can reach non-dust custting and be SYNC speed control with Tractor unit. It’s unique technology give the highlights of the lines.

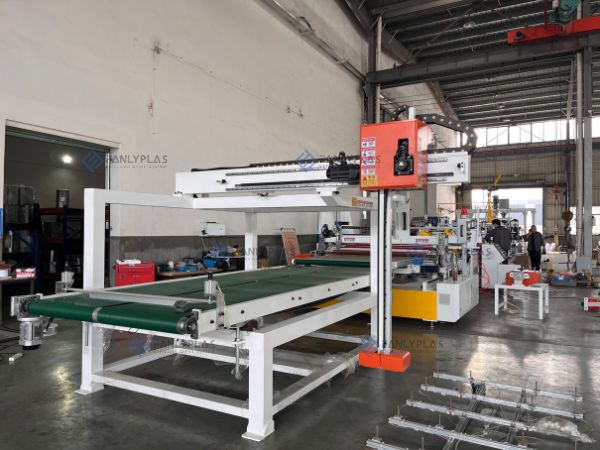

Auto Stacking System

The stacking system organizes finished sheets for easy handling and storage. It ensures efficient stacking without scratching or damaging the surfaces. It can also reach left and right stacking which is easy for workers calculate the quantities of sheets.

GPPS Sheet Production Line Workflow

Material Feeding

Raw materials GPPS pellets are fed into the hopper of the extruder by vacuum loader and hopper dryer. The feeding system ensures precise measurement and continuous supply for uninterrupted production.

Extrusion and Melting

The extruder heats and melts the raw materials while mixing them evenly. The screw rotation ensures homogeneous material flow and prepares it for shaping.

Shaping and Surface Finishing

The melt material is extruded through a die head to form a flat sheet. It is then passed through calender rollers to achieve uniform thickness and the desired surface finish, such as glossy or matte or embossing.

Cooling and Laminating (Film Coating)

The sheet is cooled using water and air both cooling system to stabilize its structure. After cooling, a protective film is laminated onto the surface to prevent scratches during handling.

Cutting and Edge Trimming

The cooled sheet is cut to the desired length using a cutting machine. Simultaneously, excess edges are trimmed to ensure uniformity and precise dimensions.

Automatic stacking

The cut plates are neatly stacked on pallets using automated robots.

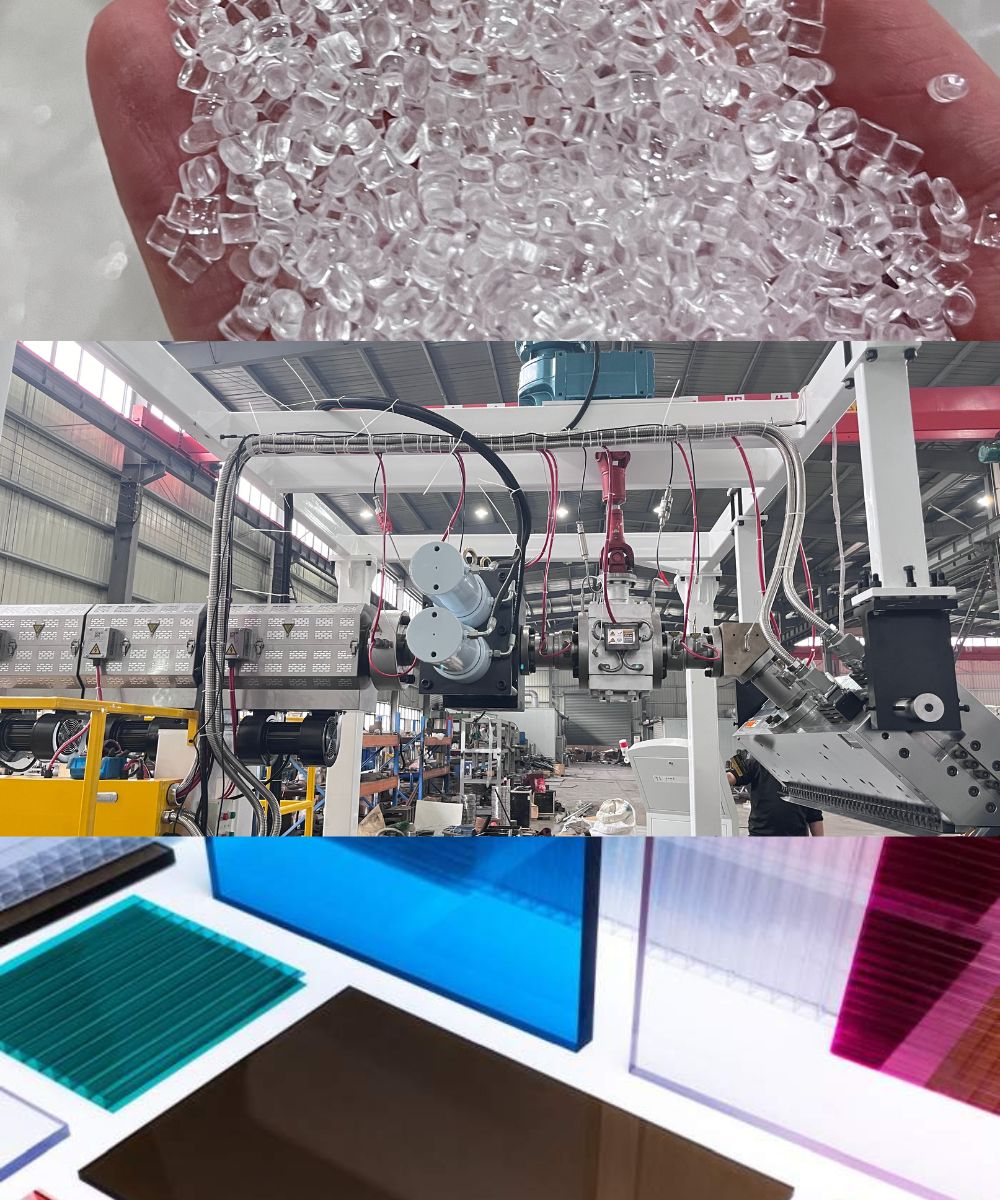

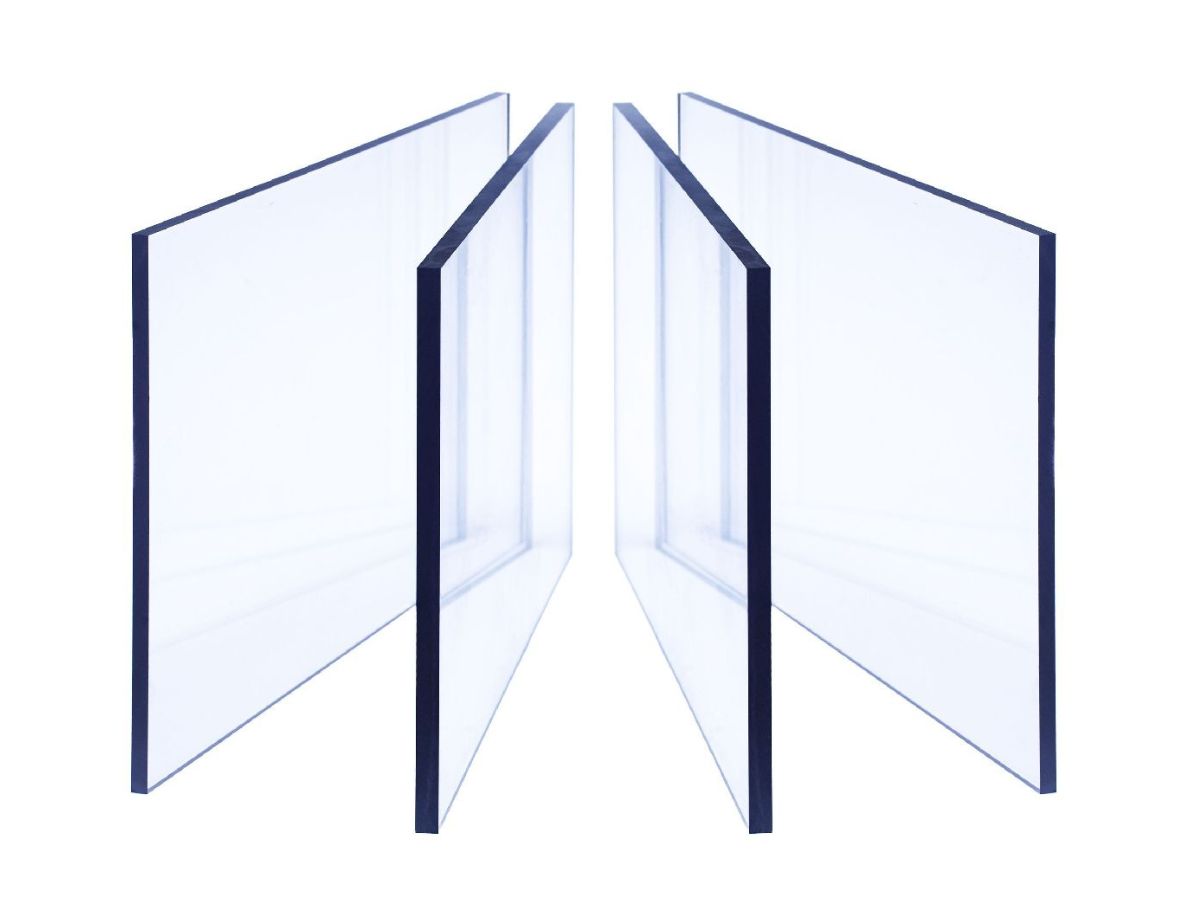

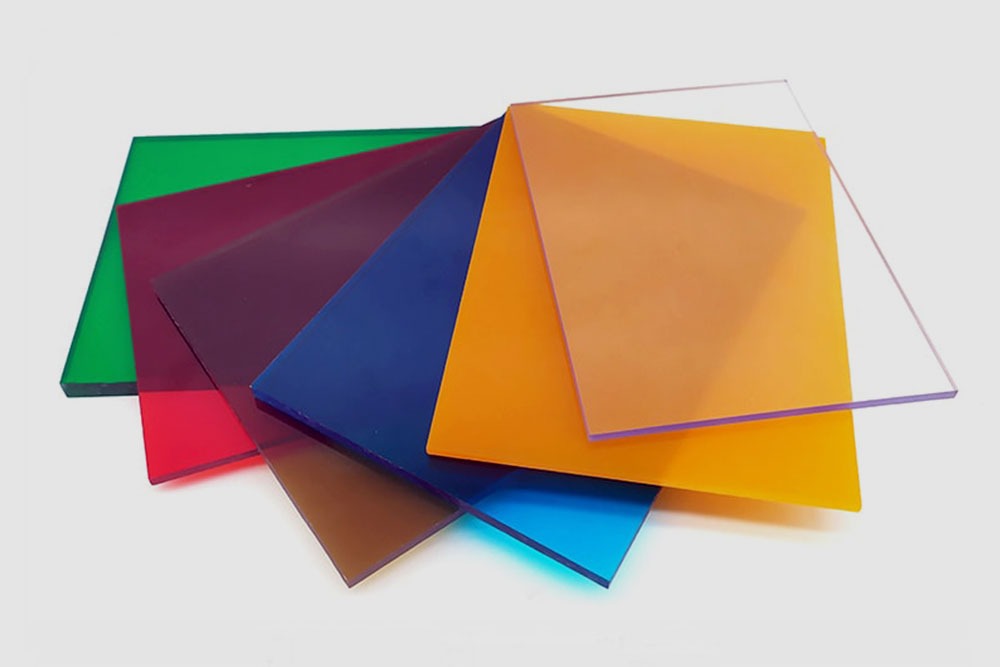

Characteristics and applications of GPPS Sheets

Characteristics of GPPS plastic：

GPPS is colorless, odorless, tasteless, shiny, transparent particles. It is light, cheap, has low water absorption, good colorability, dimensional stability, good electrical properties, transparent products, and easy processing.

Application of GPPS plastic：

General-purpose polystyrene can be used in daily necessities, electrical appliances, instrument housings, toys, lamps, household appliances, stationery, cosmetic containers, indoor and outdoor decorations, fruit plates, optical parts (such as prisms, lenses), lens windows and moldings, car lights, telecommunications accessories, electric frequency capacitor films, high-frequency insulation materials, TV containers, waveguides, chemical containers, etc. Suspension polymer resins can be made into foam plastics of different densities, used as insulation, sound insulation, shockproof, floating, packaging materials, cork substitutes, pre-foamed bodies can be used as water filtration media and to prepare lightweight concrete, and low-foamed plastics can be made into synthetic wood for furniture, etc.

Play Video

FAQS

What is the production capacity of the GPPS Sheet Extrusion Line?

The production capacity depends on the model and configuration of the Extrusion line. Typically, it ranges from 300 to 800 kg per hour. We can customize the capacity based on your specific requirements and variable as per different thickness and width.

Can the Extrusion line produce sheets of different sizes and thicknesses?

Yes, the extrusion line is designed to produce sheets with various thicknesses (from 0.8-2mm) and width between 1220-2100mm. We provide different extruder model, adjustable die heads and suitable downstreams ,calender rollers to meet your specifications.

What raw materials are required for the Extrusion line?

The primary raw material is GPPS. Additives such as UV stabilizers, Masterbatch can also be used, depending on the desired sheet properties and colors.

How long does it take to install and commission the Extrusion line?

Installation and commissioning typically take 10-15 days, depending on the complexity of the production line. Our engineers provide on-site support and training during this period.

What after-sales services do you offer?

We offer comprehensive after-sales services, including equipment maintenance, spare parts supply, remote troubleshooting, and on-site technical support. Additionally, we provide operator training to ensure smooth production.
