PVC Ceiling Panel Production Line
Be Green By Extrusion!

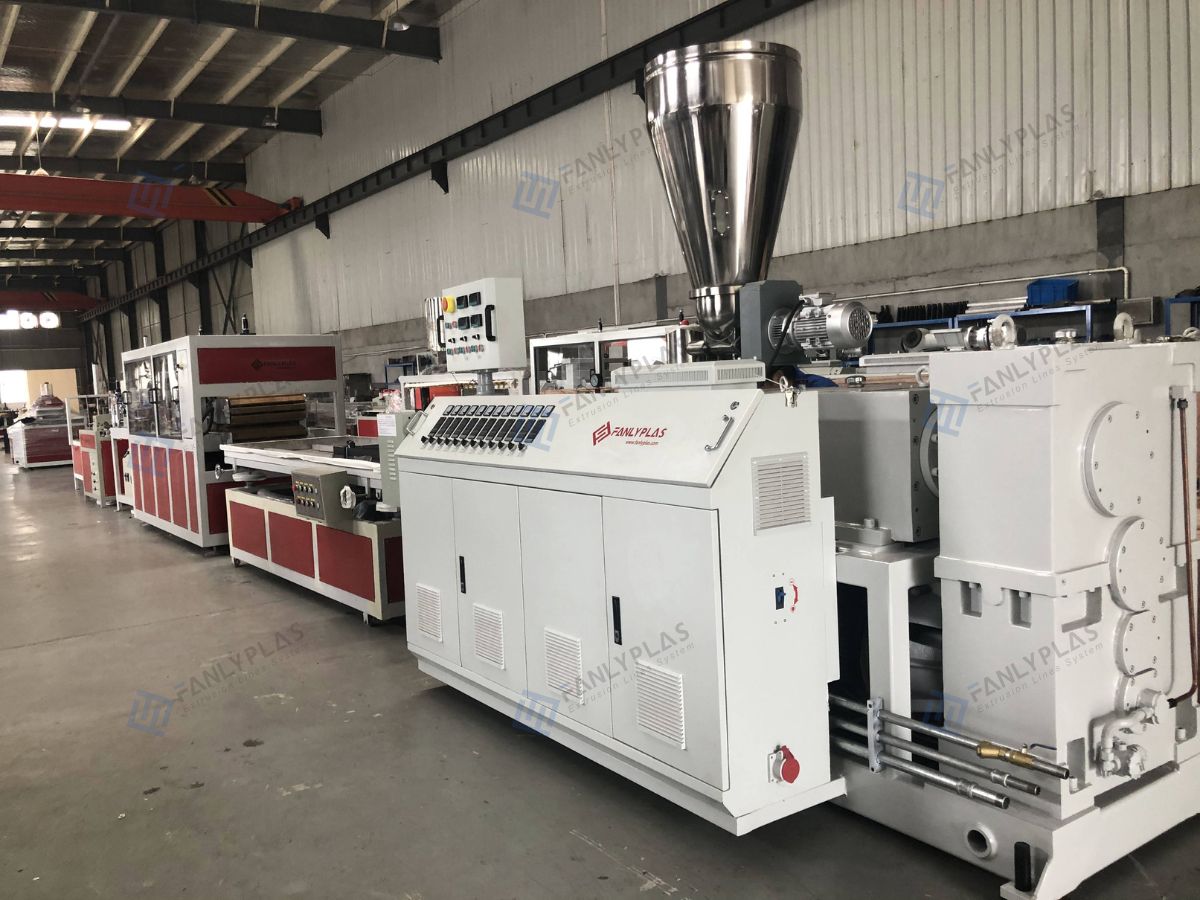

About FANLYPLAS PVC Ceiling Panel Production Line
Our PVC Ceiling Panel Production Line is engineered for exceptional versatility. It efficiently produces ceiling and wall panels with widths ranging from 100mm to 600mm. The line integrates various surface treatment options, including precision printing, hot stamping, and lamination, enabling the creation of high-value finishes like realistic wood grain and marble. Beyond panels, its modular design allows for quick mold changes to manufacture a diverse range of other PVC products, such as profiles, sheets, and decorative boards.
At the core of our line is a high-performance conical twin-screw extruder, featuring a screw manufactured with digital precision. Its advanced variable pitch and depth design ensures optimal plasticization and gentle material shearing. This, combined with a dedicated screw oil cooling system, barrel wind cooling, and an intelligent PLC control system, guarantees stable extrusion pressure, consistently high output, and a minimal defect rate for your production.
Customized PVC Ceiling Panel Extrusion line
FANLYPLAS offers customized PVC ceiling panel extrusion line based on customer requirements, including product specifications, production volume, facility size, and desired level of automation. We provide flexible configurations to meet various needs. Below are some of the standard configurations available for FANLYPLAS PVC ceiling panel extrusion line.

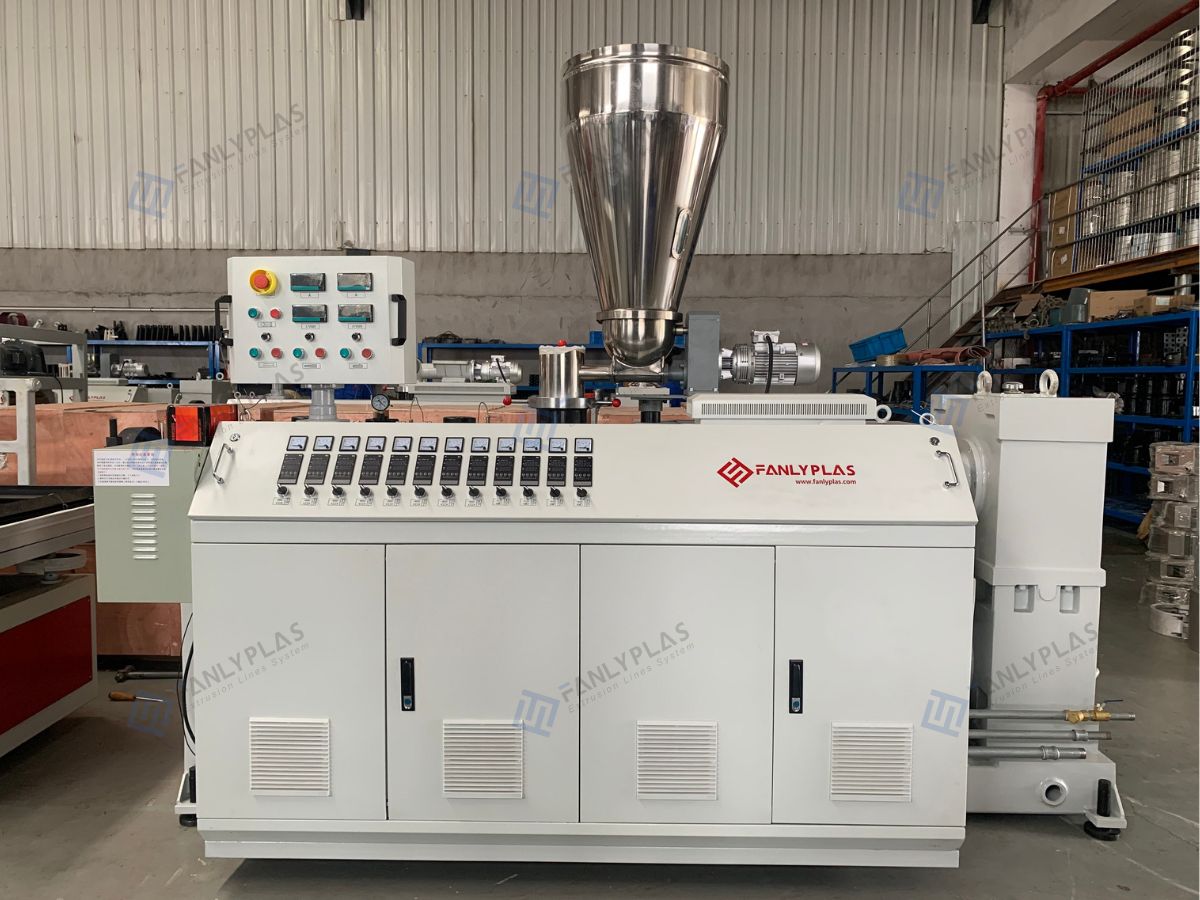

Extruder
The extruder adopts a two-stage overall design. High shear and low melt plasticizing temperature ensure high-performance, low-temperature and low-pressure metering extrusion of the material.

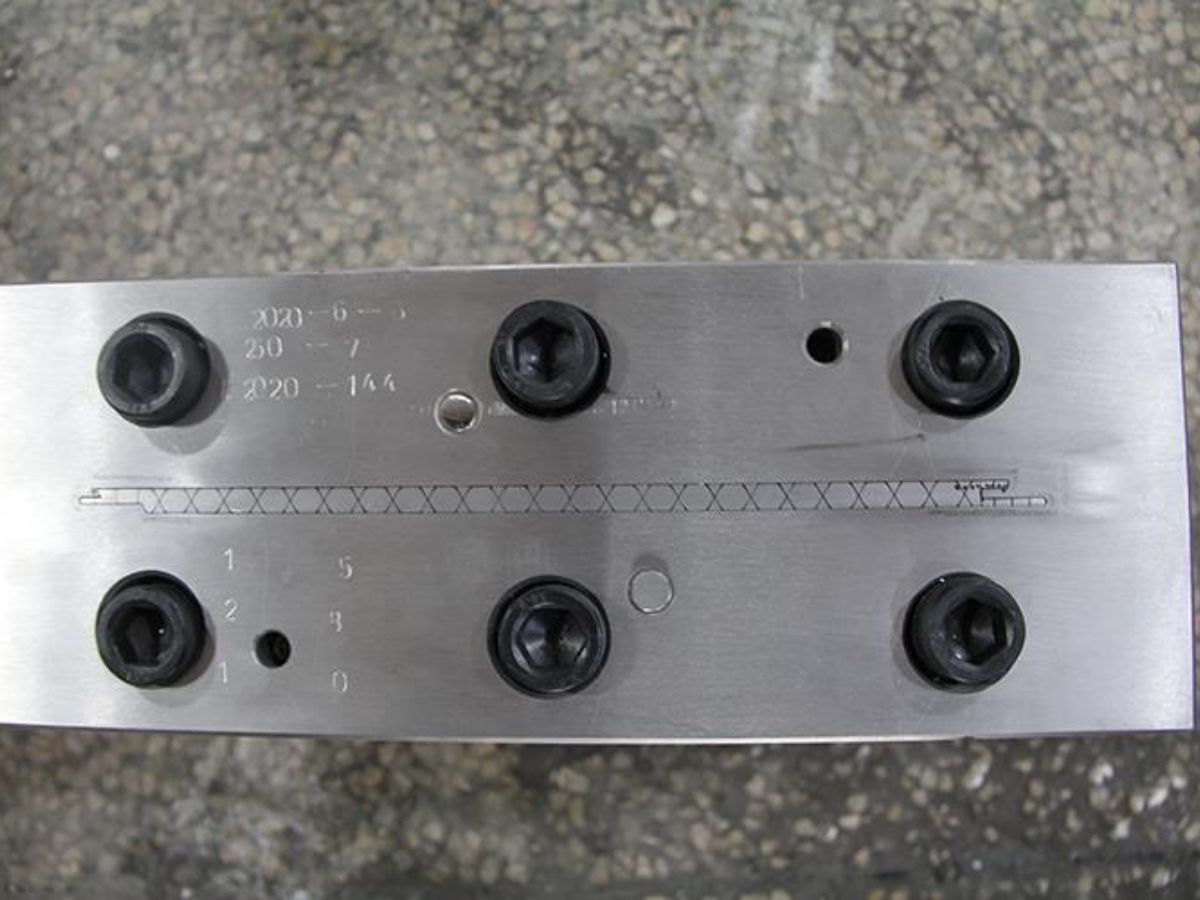

Mould
Usually has two types: X-rib and vertical rib structure, FANLYPLAS mould can ensure the product size is accurate and the surface is smooth.

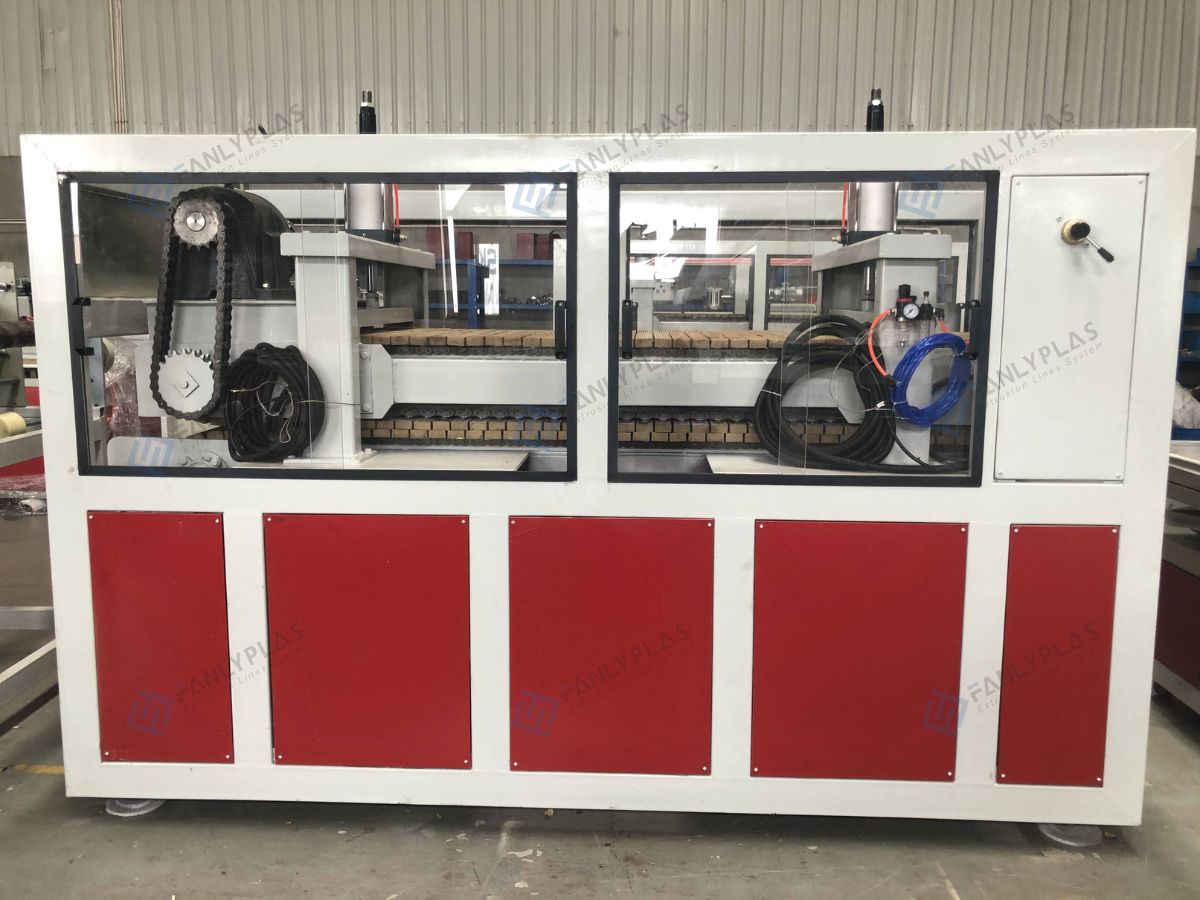

Haul-off
It consists of two upper and lower crawlers, equipped with traction rubber blocks. ABB frequency conversion control, pneumatic clamping.

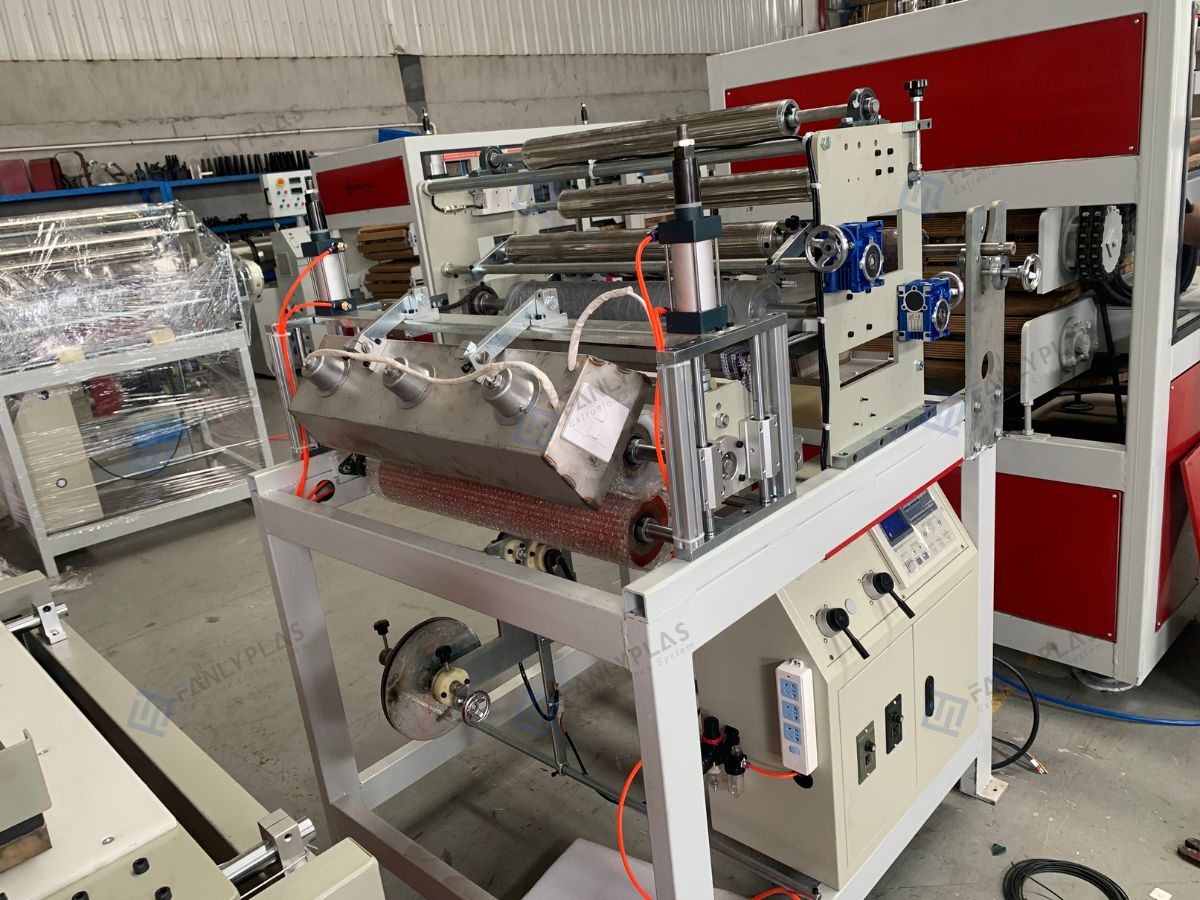

Film Laminating/Hot Stamping Machine
Combines the functions of online glue coating, film laminate and hot stamping.
Knife Cutting Machine
The cutting device is a knife cutter equipped with a synchronous tracking mechanism to ensure that the product section is flat and free of cracks.

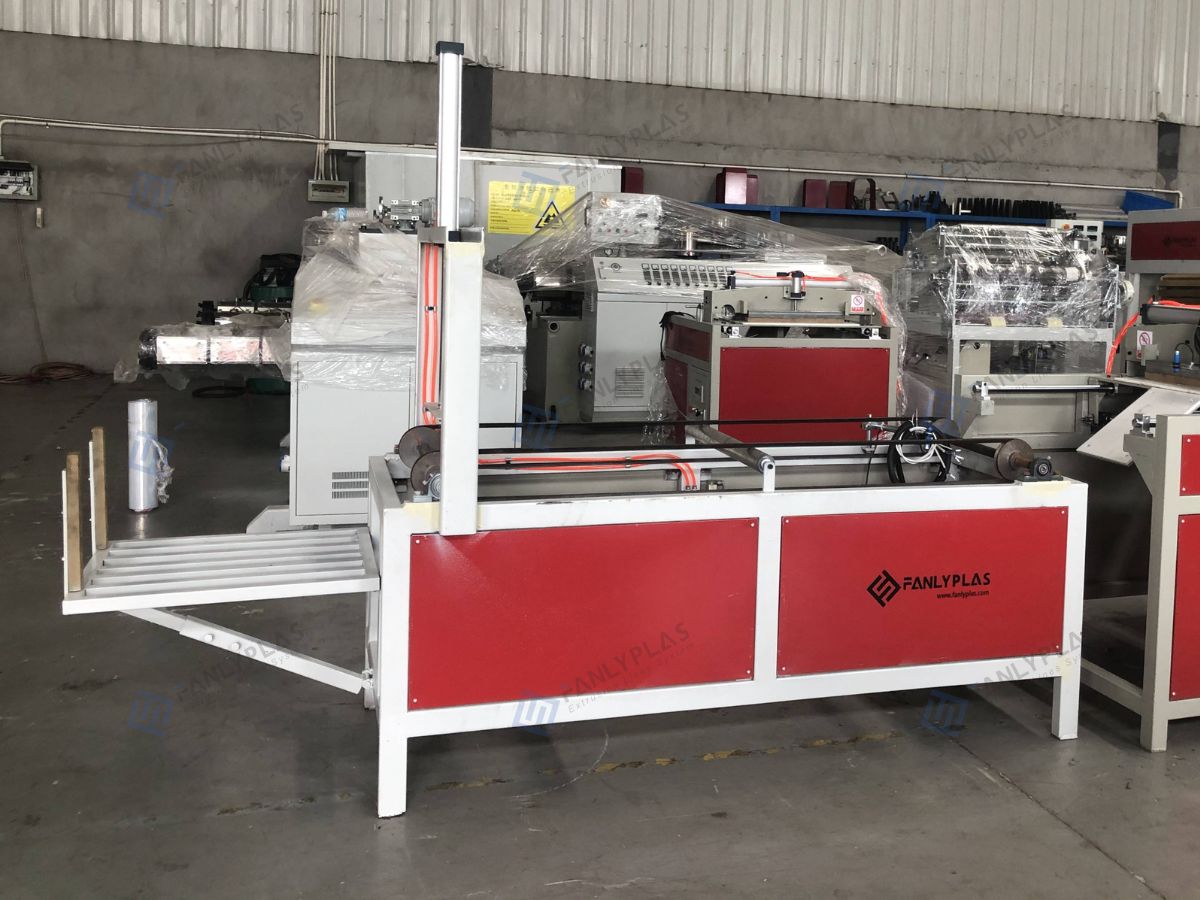

Automatic Stacker
Customized according to different product sizes. The limiter accurately controls the cutting length.
PVC Ceiling Panel Extrusion line Main Parameters Table
The maximum output listed is an approximation based on standard raw materials. Actual output may vary depending on factors such as the material formulation (e.g., the inclusion of recycled content), product thickness, and operational parameters.
| Extruder Model | Main Motor Power | Production Capacity | Width range | Thickness range |
|---|---|---|---|---|
|
FLZ48/113
|
15(kw) |
80-120(kg/h) |
50-150(mm) |
5-20(mm) |
|
FLZ51/105
|
18.5(kw) |
100-160(kg/h) |
100-200(mm) |
5-20(mm) |
|
FLZ55/120 |
22(kw) |
120-180(kg/h) |
100-300(mm) |
5-20(mm) |
|
FLZ65/132 |
37(kw) |
150-250(kg/h) |
300-600(mm) |
5-20(mm) |
|
FLZ65/138 high speed |
45(kw) |
200-350(kg/h) |
600(mm) |
5-20(mm) |
|
FLZ80/156 high speed |
55(kw) |
250-400(kg/h) |
600(mm) |
5-20(mm) |
Why Choose PVC Ceiling Panel Extrusion Machine from FANLYPLAS?
Superior Quality & Advanced Technology
ANLYPLAS is committed to providing high-quality PVC ceiling panel extrusion machine, utilizing advanced extrusion technology and precise mold design to ensure stable and efficient operation, producing excellent PVC ceiling panel to help you stand out in the market.
Customized Solutions & Professional Service
We have an experienced team that can provide tailor-made production line solutions based on your specific needs. Additionally, we offer comprehensive installation, training, and after-sales service to ensure the smooth operation of your production without any worries.
Continuous Innovation & Trustworthy Brand
FANLYPLAS, a well-known plastic extrusion equipment manufacturer in Shanghai, China, has obtained ISO9001 quality management system certification. Choosing us will ensure you have a long-term partner.
Q&A
What quality assurance can you offer, and what brands of components do you use?
Quality is our cornerstone. With over 20 years of manufacturing experience, we build our machines for reliability and performance. We integrate premium components from world-renowned brands like Siemens, Schneider, and Omron to guarantee stability and a long service life. Before shipment, every production line undergoes a rigorous quality control inspection and a complete test run at our factory. We welcome you or your designated third-party to witness this pre-delivery test in person to ensure your total satisfaction.
What kind of after-sales service do you provide for international customers?
We provide comprehensive global after-sales service to ensure your success. Our experienced engineers can travel to your factory for on-site installation, commissioning, and operator training. For long-term peace of mind, we offer lifetime 24/7 online technical support via video call or messaging for any troubleshooting needs. Furthermore, we guarantee a reliable, long-term supply of all necessary spare parts at a reasonable cost, ensuring your production line runs smoothly for years to come.
How can I get a quotation for your PVC ceiling panel extrusion line?
You can contact us via WhatsApp, email, or by filling out the contact form on our website. To ensure we provide the most accurate solution, please include your PVC ceiling panel drawings, the required production capacity (kg/hr), and your planned surface treatment process (e.g., printing, lamination). Our expert team will promptly provide you with a customized proposal.
What is the delivery time for your machines?
The typical delivery time for a standard PVC ceiling panel production line is approximately 60 to 90 working days after receiving the down payment and confirming all technical specifications. The exact lead time can vary depending on the complexity and customization of the machine, as well as our current production schedule. We will provide a confirmed delivery schedule in our official sales contract.
Let's Build Your Ideal PVC Ceiling Panel Production Line
Tell us your requirements, and our engineering team will provide a customized technical proposal and a competitive quote within 24 hours.
