PVC Siding/Soffit Panel Production Line
Be Green By Extrusion!

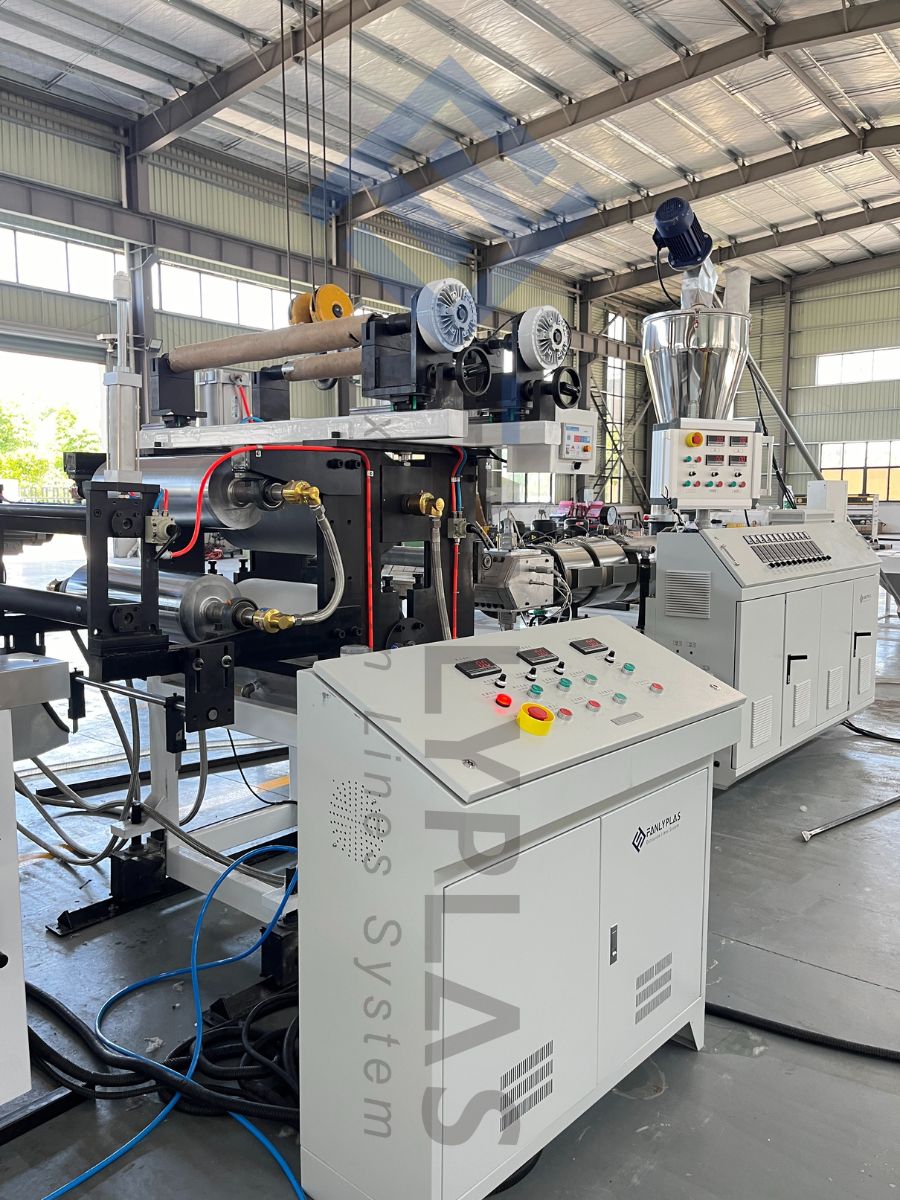

About FANLYPLAS PVC Siding/Soffit Panel Production Line
Our production line is engineered to produce a wide range of PVC panels for both exterior and interior applications. It is perfectly suited for manufacturing durable outdoor siding and soffit panels as well as elegant indoor decorative wall and ceiling panels. By incorporating co-extrusion technology, the line applies various surface layers, providing exterior products with superior UV resistance and color retention. For interior panels, this allows for diverse and sophisticated surface finishes.
The FANLYPLAS line is defined by stability and efficiency. At its core, a high-performance extruder ensures uniform plasticization and stable melt flow for consistent quality. Downstream, a vacuum calibration system guarantees precise shaping for high-speed extrusion, while an integrated online punching and cutting system provides accurate finishing. The entire line is governed by an advanced PLC control system, offering intuitive operation and real-time monitoring to maximize production and minimize waste.

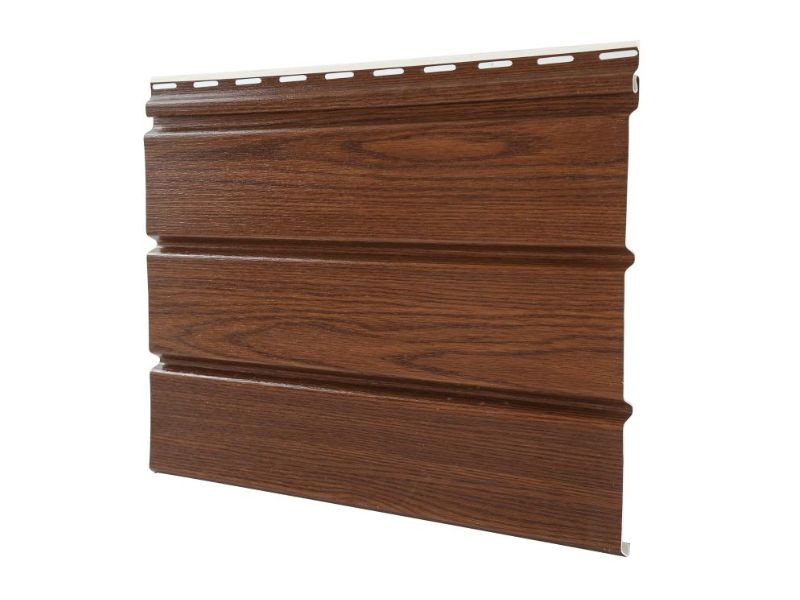

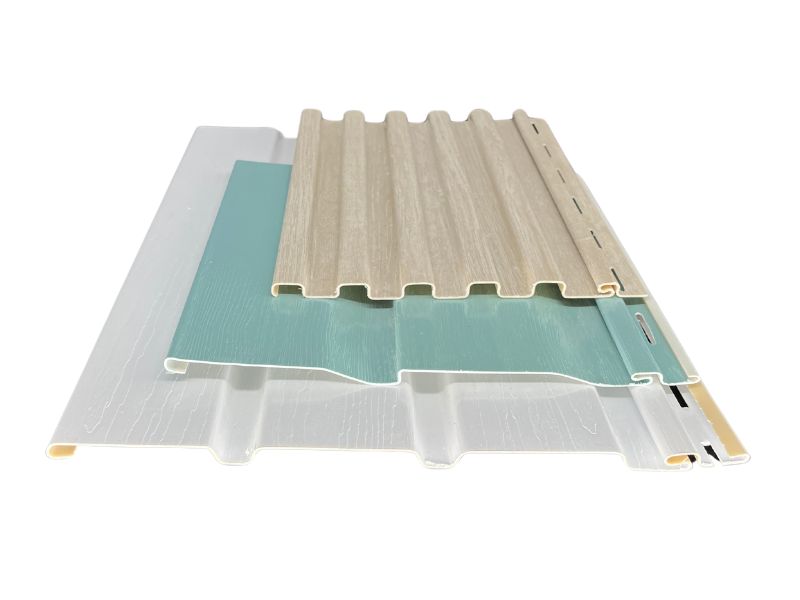

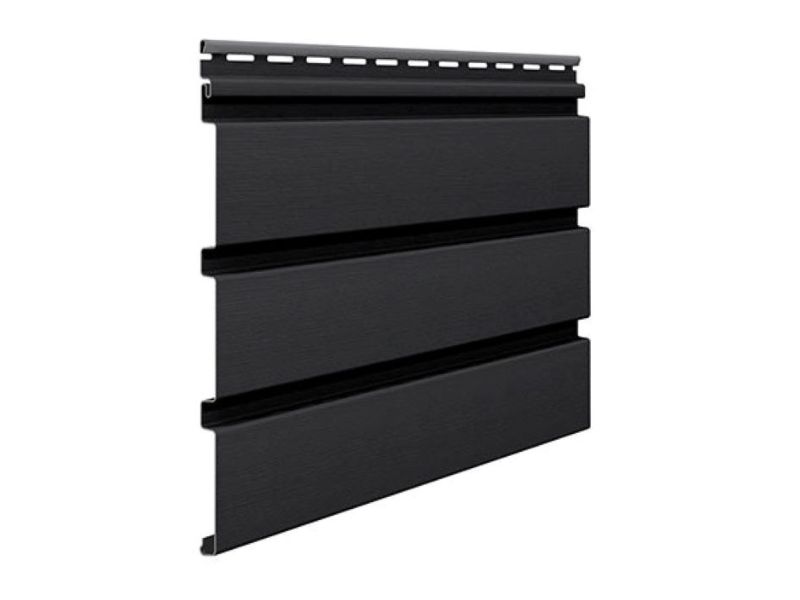

Applications of PVC Siding/Soffit Panels

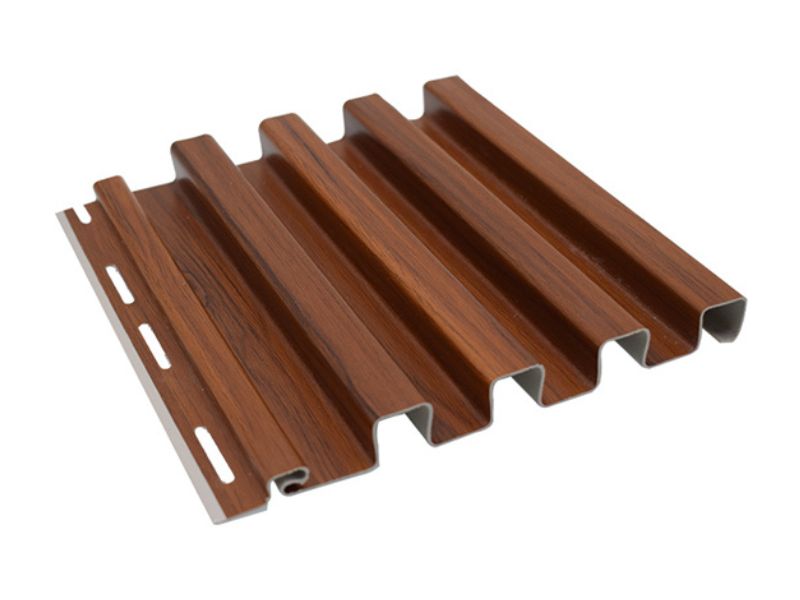

1. Light weight, various designs, replacing of heavy louvers because of it’s light weight advantages for interios decor. It makes the building look simple, natural and beautiful.
2. When used interior, PVC films with a variety of patterns can be used. Different shape design and film design can be selected according to different scenes to achieve beautiful decorative effects.

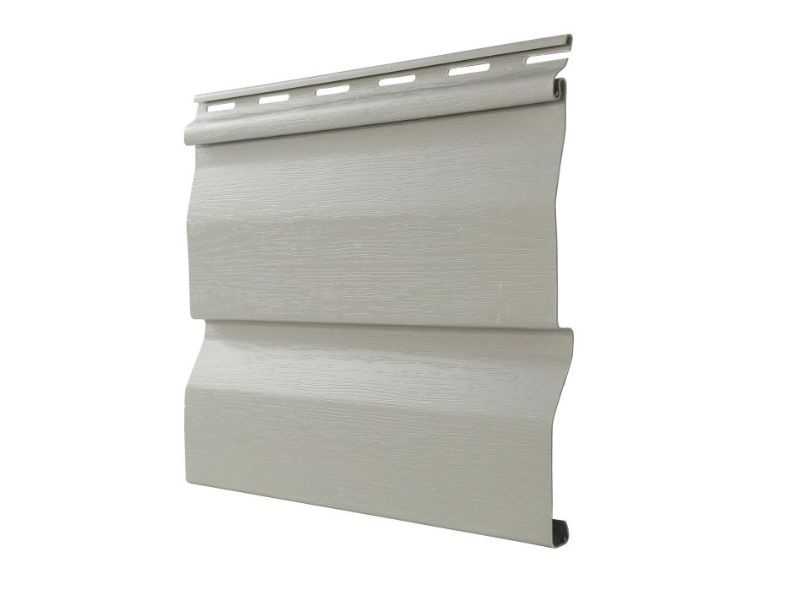

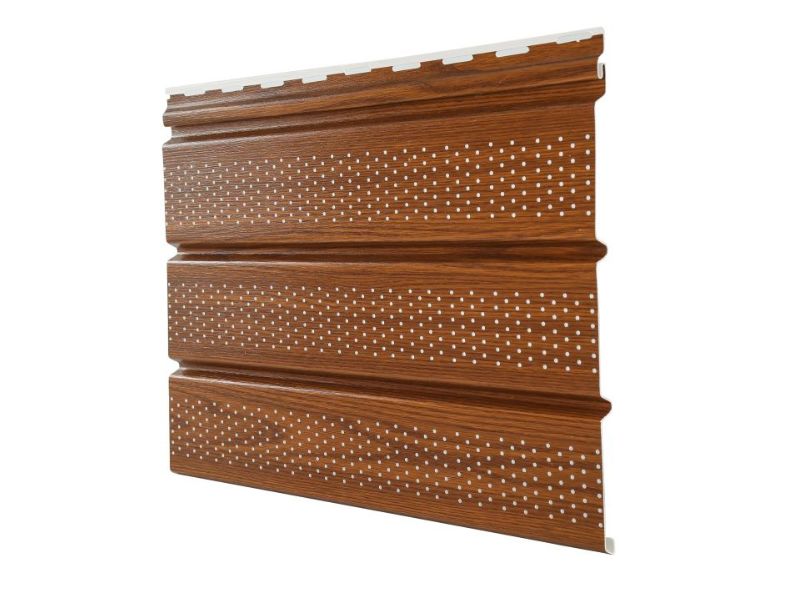

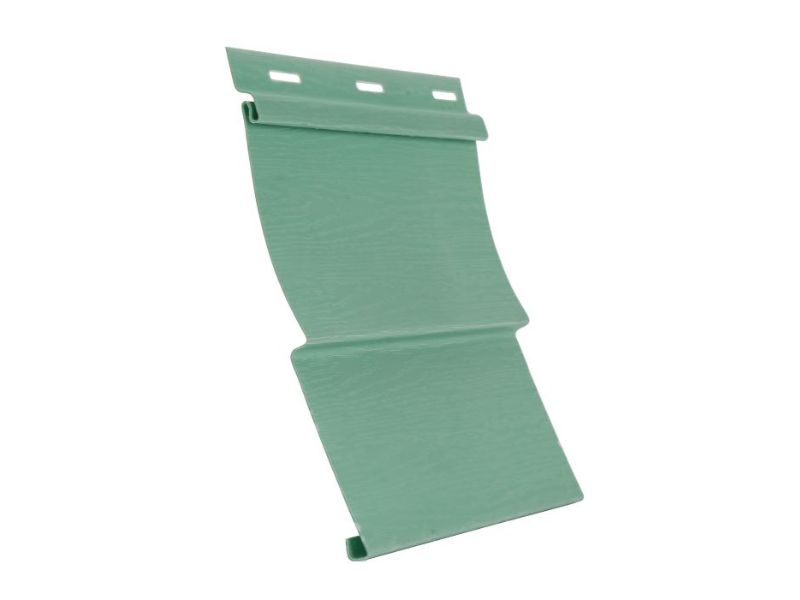

3. When used exterior, we choose co-extruded panel. Since the co-extruded layer has excellent anti-oxidation, anti-ultraviolet, and corrosion resistance, the service life can be guaranteed to be up to 10 years.

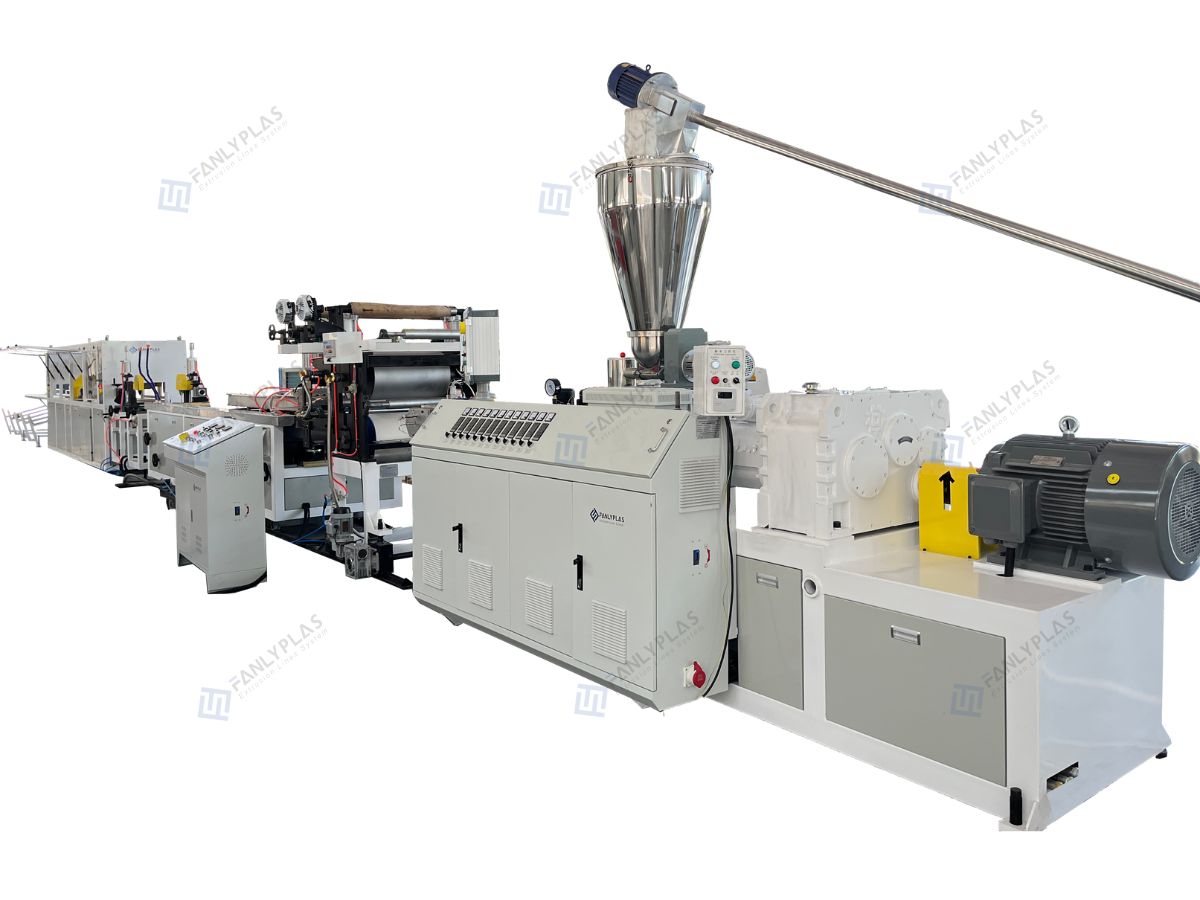

PVC Siding/Soffit Panel Production Line Composition
FANLYPLAS customizes PVC siding/soffit lines to your specs, output, and automation needs. Our flexible configurations include standard setups, such as a 65/132 extruder for interior panels, or adding a 45/30 single-screw co-extruder for durable exterior panels.

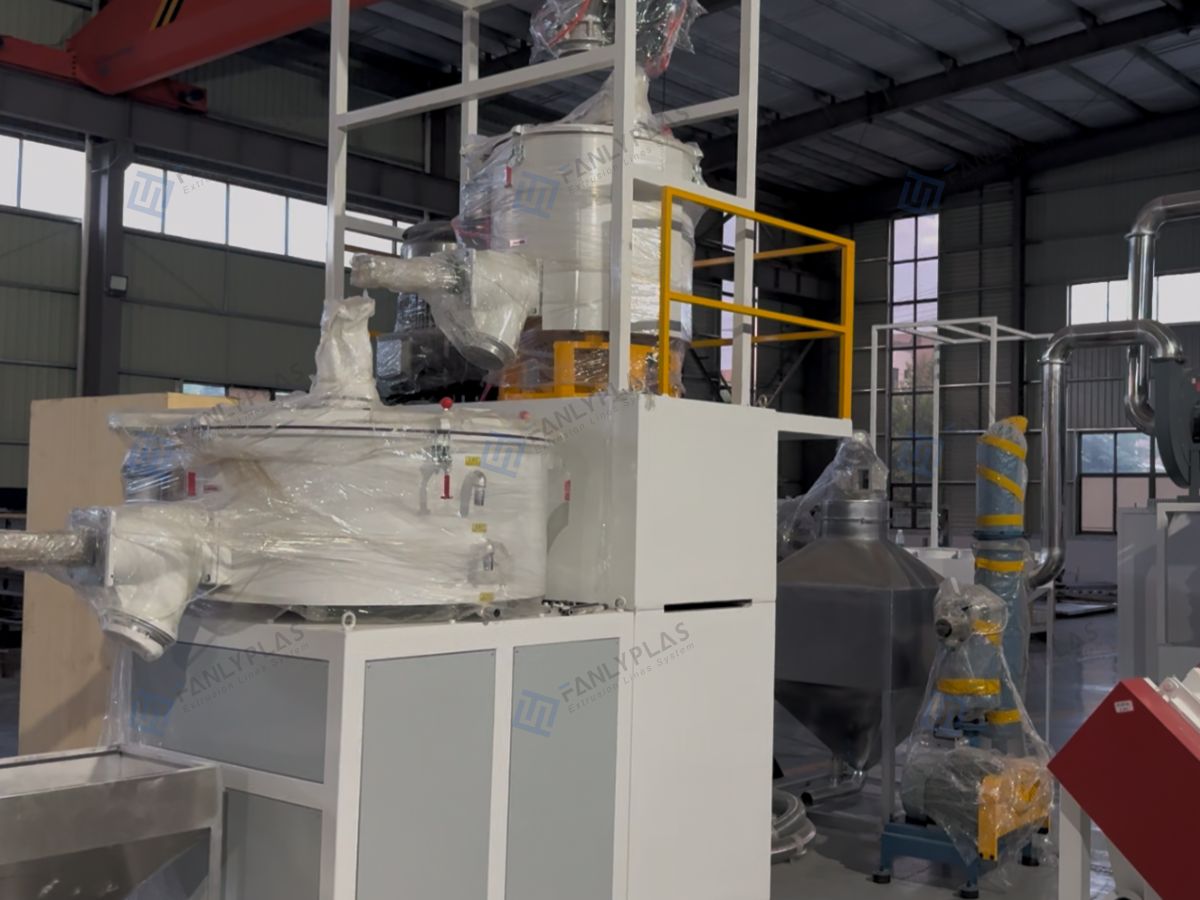

SRL-Z 300/600Mixer
This unit combines a high-speed heating mixer with a vertical cooling mixer. It utilizes self-friction for rapid, uniform blending of PVC resin and additives. The pot cover employs a dual-seal system, ensuring no leakage.

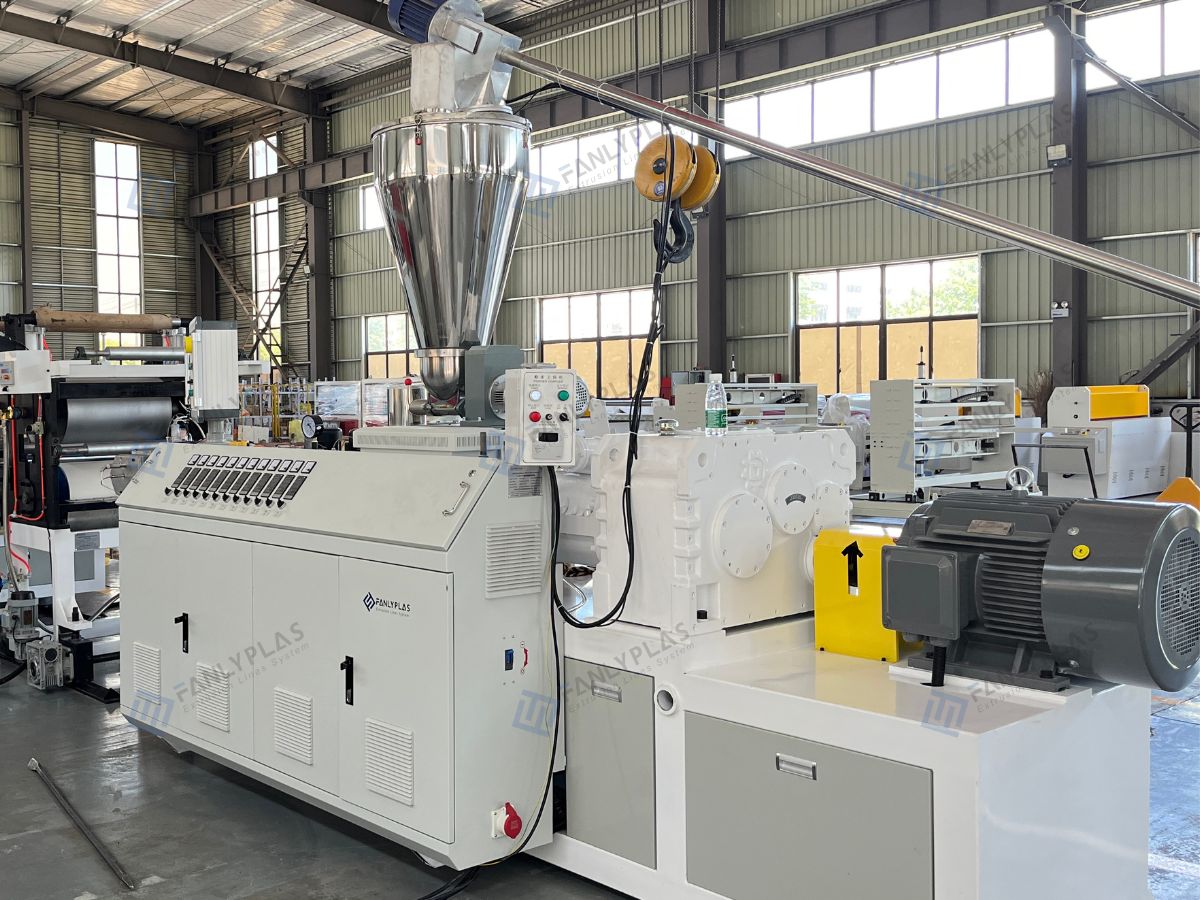

FLZ65/132 Conical Twin Screw Extruder
The heart of the line, this extruder features an optimized screw design for PVC dry blends. It ensures uniform plasticization and stable melt pressure. Equipped with a high-torque gearbox and advanced temperature control for high output and reliability.

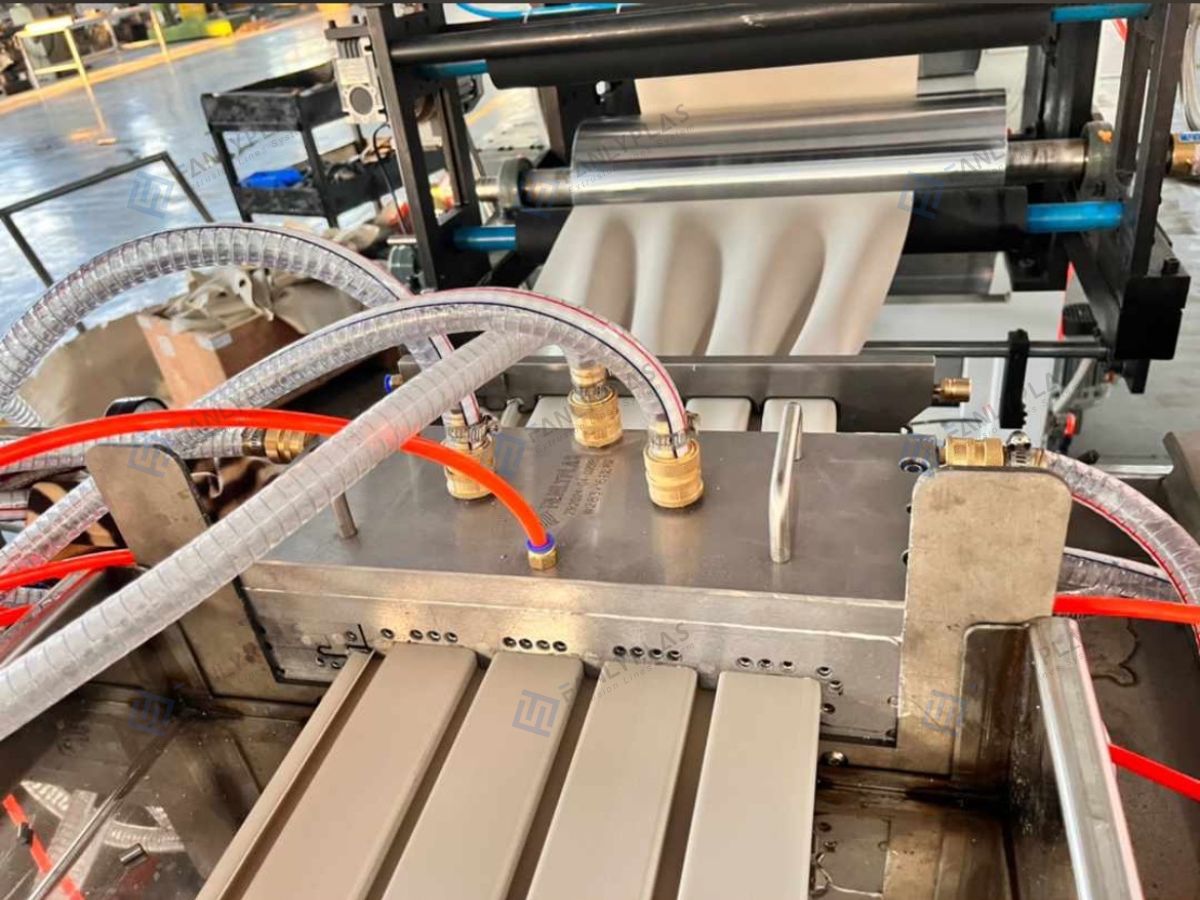

T-Die+Calibrator
The custom-designed T-die features a polished, chrome-plated flow channel for optimal melt distribution. The downstream stainless steel calibrator utilizes an efficient vacuum and water cooling system to ensure precise profile shaping and a superior finish.

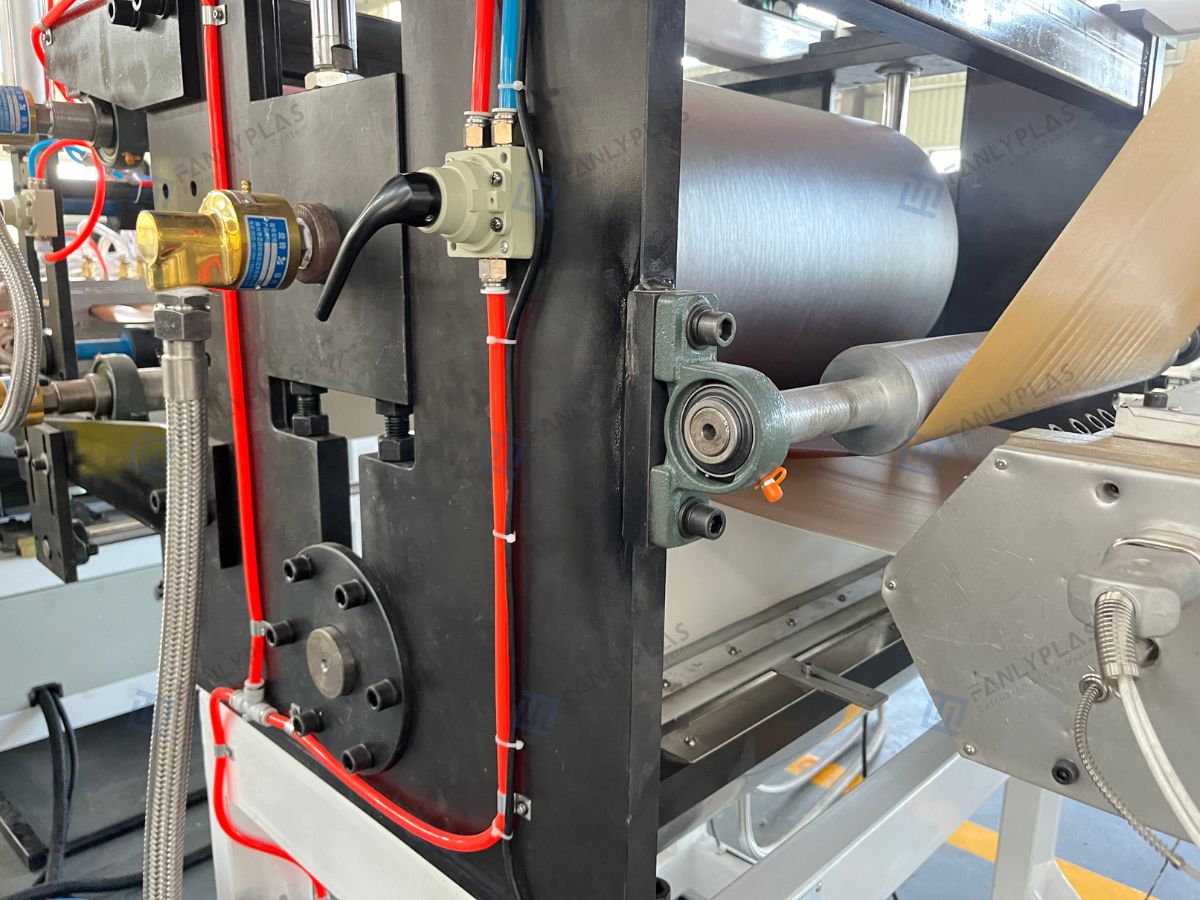

Embossing and Laminating Machine
This unit creates deep, realistic surface textures like wood grain via a precision-engraved embossing roller with independent heating. It also precisely applies decorative or protective films, equipped with tension control for a bubble-free, durable bond.

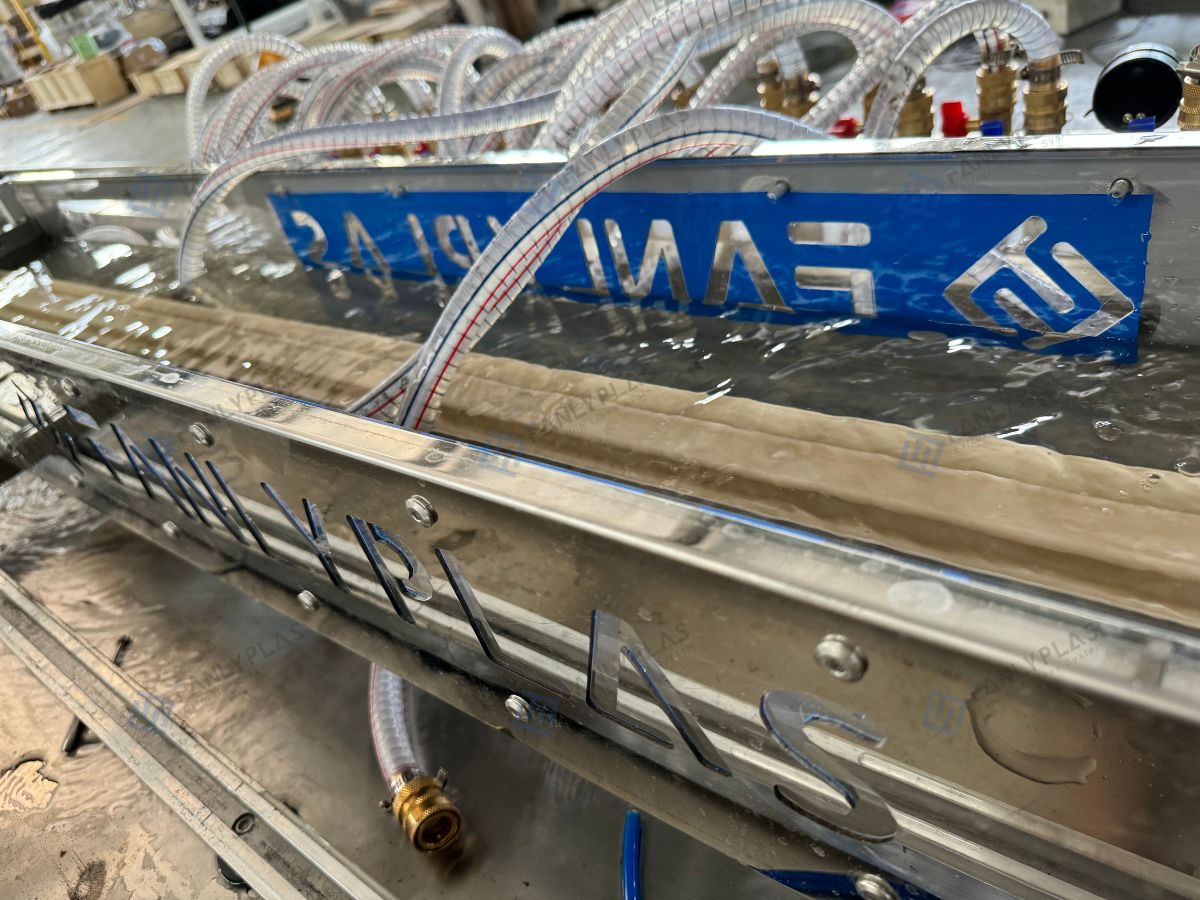

Calibration Table
This unit uses an intensive vacuum and a closed-loop water cooling system to precisely shape and solidify the profile at high speeds. Its stainless steel construction ensures durability, while motorized adjustments allow for accurate alignment and control.

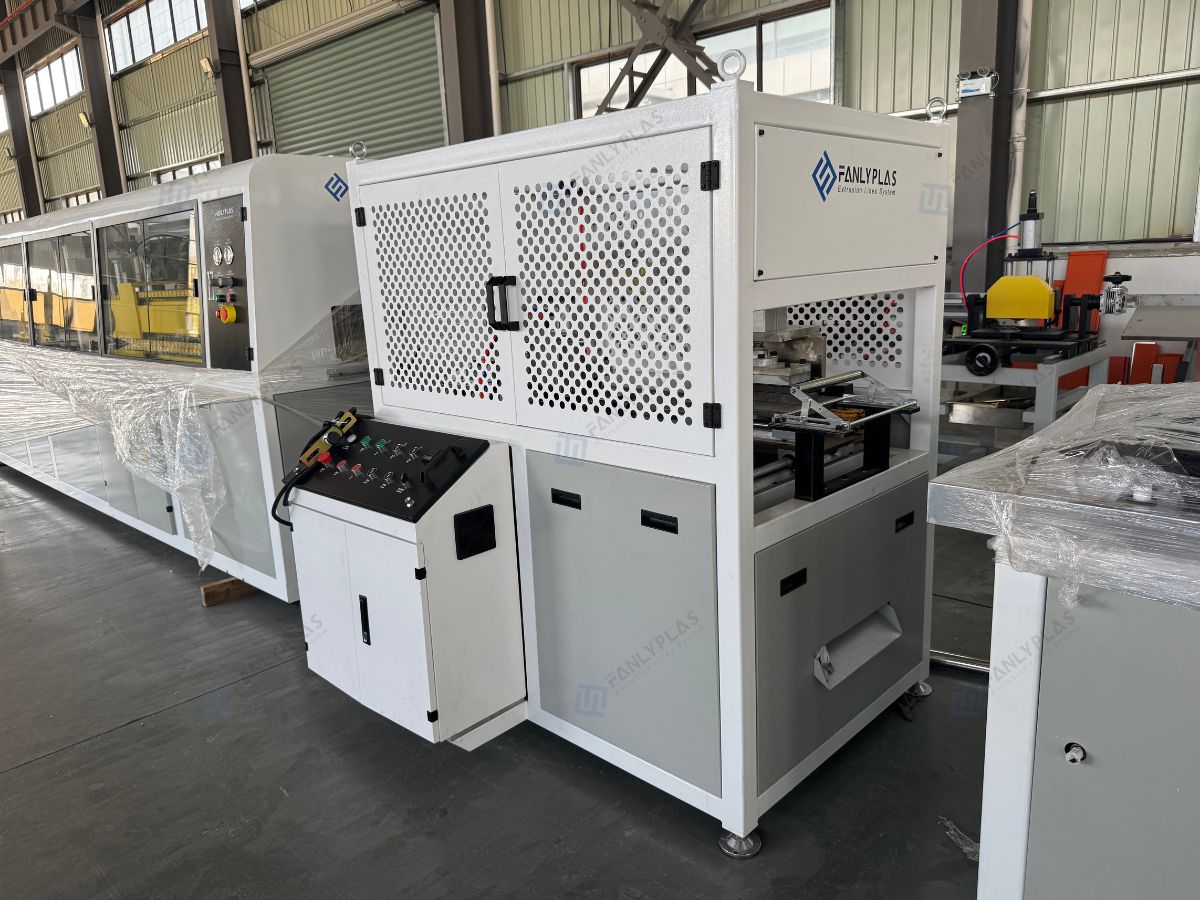

Punching machine
Integrated directly into the line, this machine performs high-speed, precise punching for nail slots and ventilation holes. It is servo-driven for accuracy and synchronized with the line speed, ensuring clean, burr-free cuts without deforming the profile.

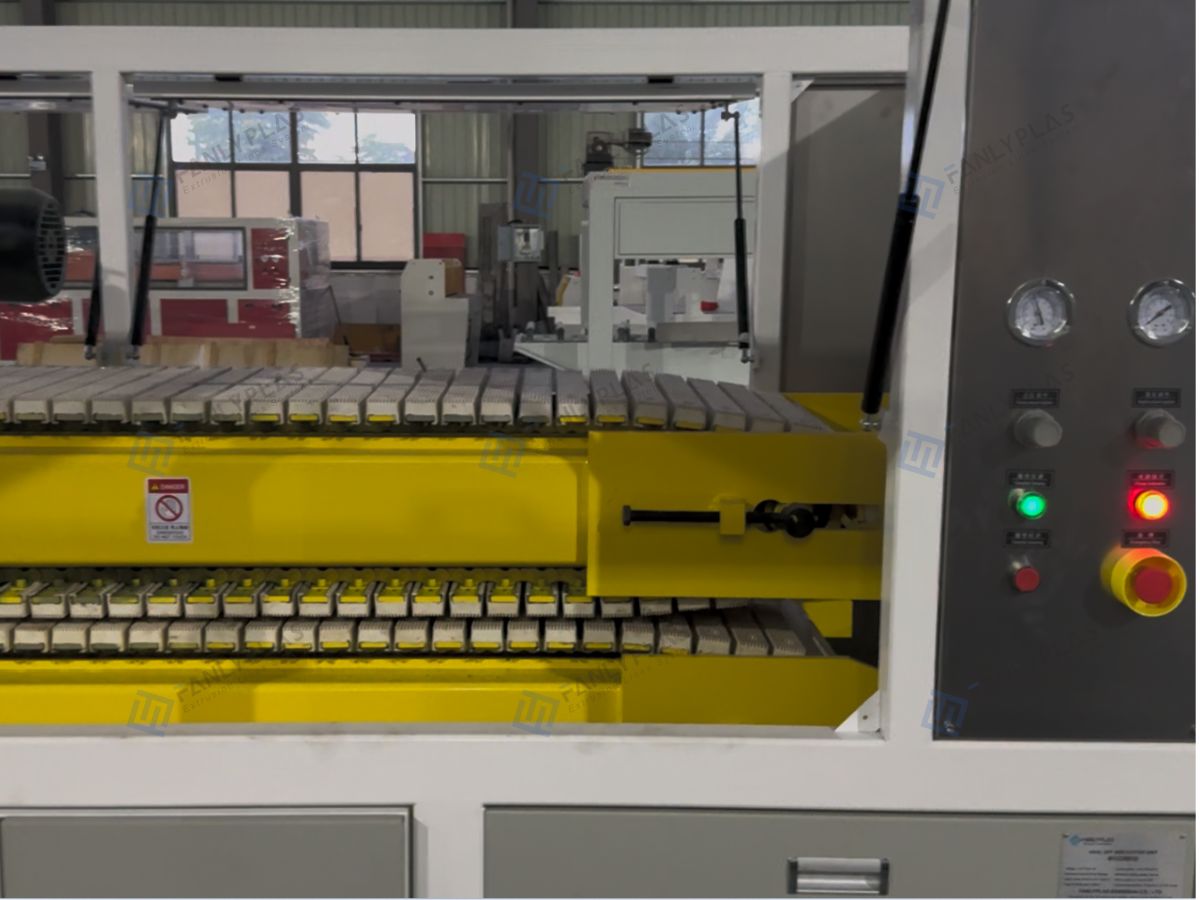

Haul off
This caterpillar haul-off provides stable and powerful traction without profile distortion. It features high-grip, wear-resistant rubber pads and a frequency inverter for precise speed control, ensuring perfect synchronization with the extruder's output.

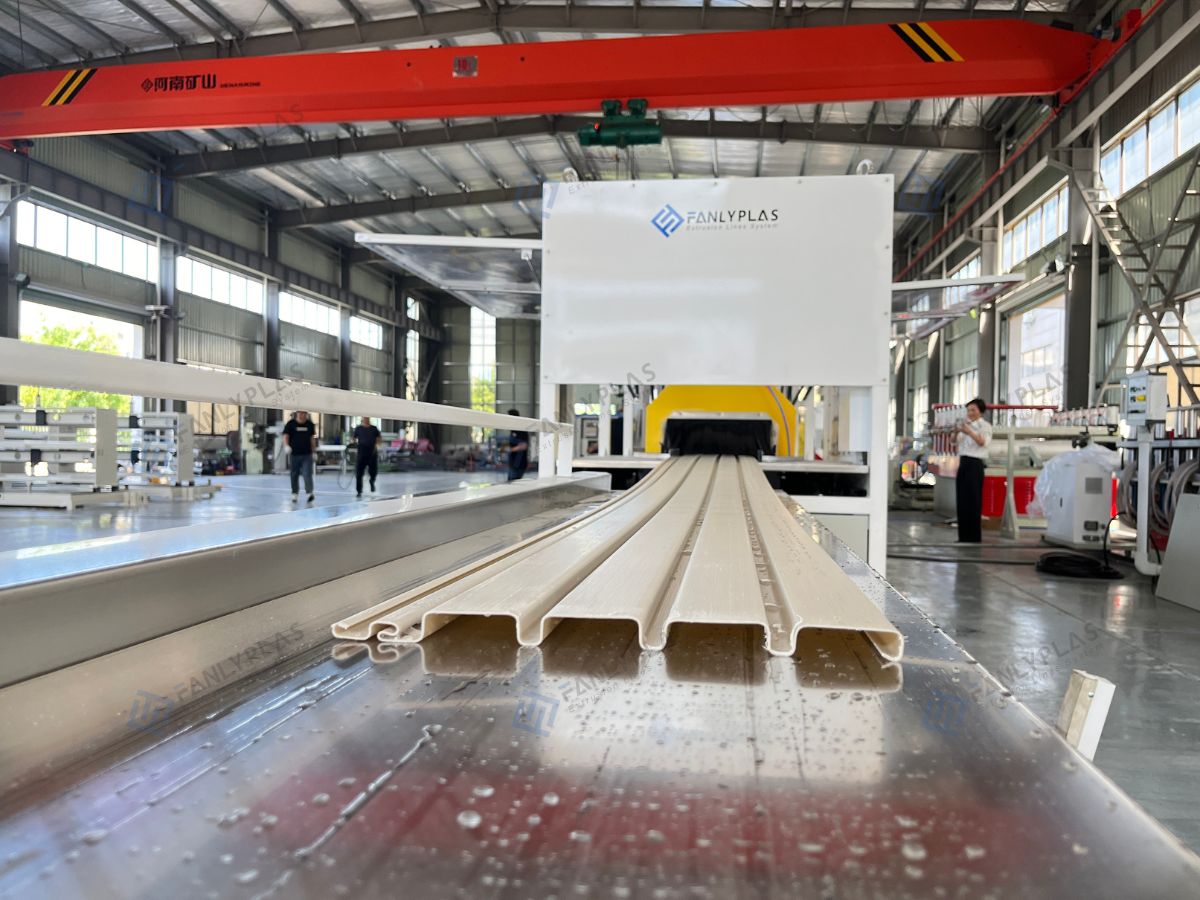

Cutter
This PLC-controlled cutter is synchronized with the line speed to ensure precise, consistent lengths. It utilizes a hardened alloy blade and a clamping device to deliver a clean, burr-free cut without deforming or scratching the finished profile.

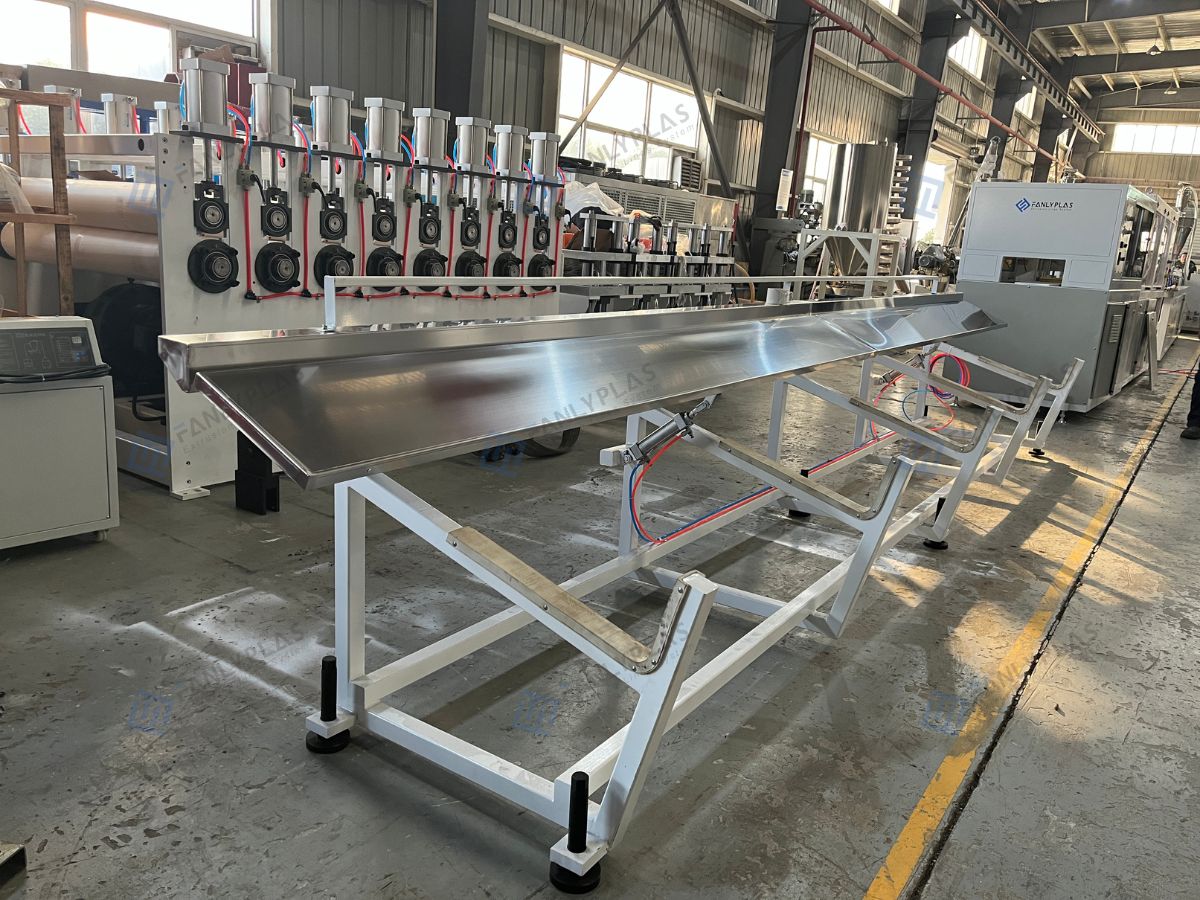

Stacker
Synchronized with the cutter, this unit automatically flips to neatly stack profiles once the set length is reached. This automated action ensures seamless collection of finished products and significantly reduces labor requirements.
PVC Siding/Soffit Panel Extrusion Line Main Parameters Table
The maximum output listed is an approximation based on standard raw materials. Actual output may vary depending on factors such as the material formulation (e.g., the inclusion of recycled content), product thickness, and operational parameters.
| Extruder Model | Main Motor Power | Production Capacity | Width range | Thickness range |
|---|---|---|---|---|
|
FLZ65/132
|
37 (kw) |
160-250 (kg/h) |
240/300 (mm) |
0.7-2 (mm) |
|
FLZ80/156
|
55 (kw) |
200-350 (kg/h) |
240/300 (mm) |
0.7-2 (mm) |
Why Choose PVC Siding/Soffit Panel Extruder from FANLYPLAS?
Superior Quality & Advanced Technology
ANLYPLAS is committed to providing high-quality PVC siding/soffit panel extruder, utilizing advanced extrusion technology and precise mold design to ensure stable and efficient operation, producing excellent PVC siding/soffit panel to help you stand out in the market.
Customized Solutions & Professional Service
We have an experienced team that can provide tailor-made production line solutions based on your specific needs. Additionally, we offer comprehensive installation, training, and after-sales service to ensure the smooth operation of your production without any worries.
Continuous Innovation & Trustworthy Brand
FANLYPLAS, a well-known plastic extrusion equipment manufacturer in Shanghai, China, has obtained ISO9001 quality management system certification. Choosing us will ensure you have a long-term partner.
Q&A
What quality assurance can you offer, and what brands of components do you use?
Quality is our cornerstone. With over 20 years of manufacturing experience, we build our machines for reliability and performance. We integrate premium components from world-renowned brands like Siemens, Schneider, and Omron to guarantee stability and a long service life. Before shipment, every production line undergoes a rigorous quality control inspection and a complete test run at our factory. We welcome you or your designated third-party to witness this pre-delivery test in person to ensure your total satisfaction.
What kind of after-sales service do you provide for international customers?
We provide comprehensive global after-sales service to ensure your success. Our experienced engineers can travel to your factory for on-site installation, commissioning, and operator training. For long-term peace of mind, we offer lifetime 24/7 online technical support via video call or messaging for any troubleshooting needs. Furthermore, we guarantee a reliable, long-term supply of all necessary spare parts at a reasonable cost, ensuring your production line runs smoothly for years to come.
How can I get a quotation for your PVC Siding/Soffit Panel Production Line?
To receive an accurate quotation, please contact us with your specific requirements, as our production lines are fully customizable. Provide us with details such as your desired panel width and thickness, required output capacity (kg/hr), and the intended end application. Also, mention any special requests like specific component brands. Once we have this information, our sales engineering team will promptly prepare and send you a detailed technical proposal and a competitive price quotation.
What is the delivery time for your machines?
The typical delivery time for a standard PVC siding/soffit panel extrusion Line is approximately 60 to 90 working days after receiving the down payment and confirming all technical specifications. The exact lead time can vary depending on the complexity and customization of the machine, as well as our current production schedule. We will provide a confirmed delivery schedule in our official sales contract.
